Condenser Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Discharge the refrigerant from the system. (See REFRIGERANT RECOVERY and REFRIGERANT CHARGING .)
  3. Remove the radiator grille.
    CAUTION:
    • If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.
    • Do not allow A/C compressor oil to spill. Operating the A/C compressor without sufficient A/C compressor oil can lead to abnormal noise and cause the A/C compressor to seize up.
  4. Remove in the order indicated in Fig 1.

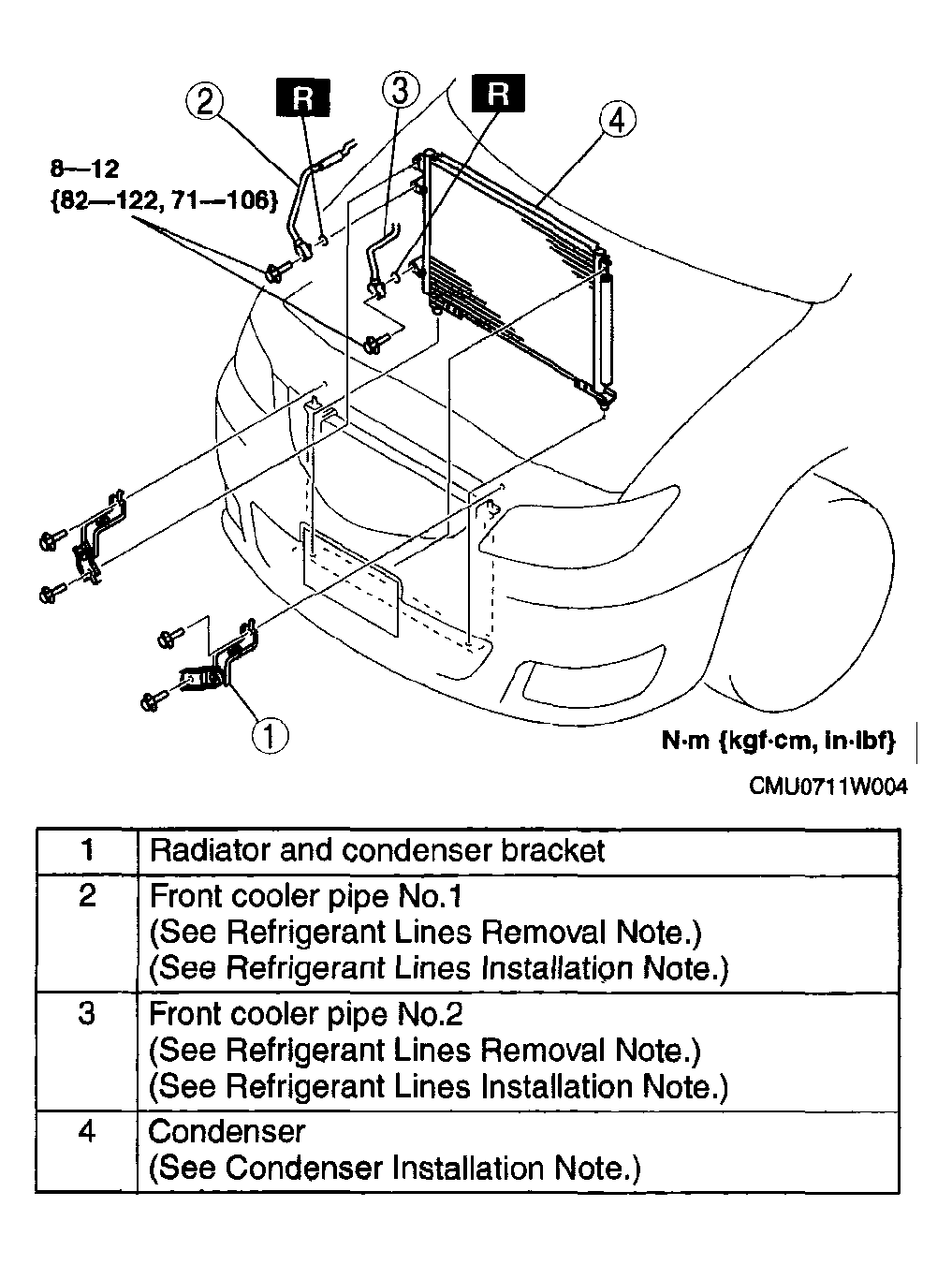

    Fig 1: Removing Condenser With Torque Specifications
    G04328953Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
  6. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST .)
