Rear Climate Control Unit Disassembly/Assembly

1. Disassemble in the order indicated in Fig 1.
2. Assemble in the reverse order of disassembly.

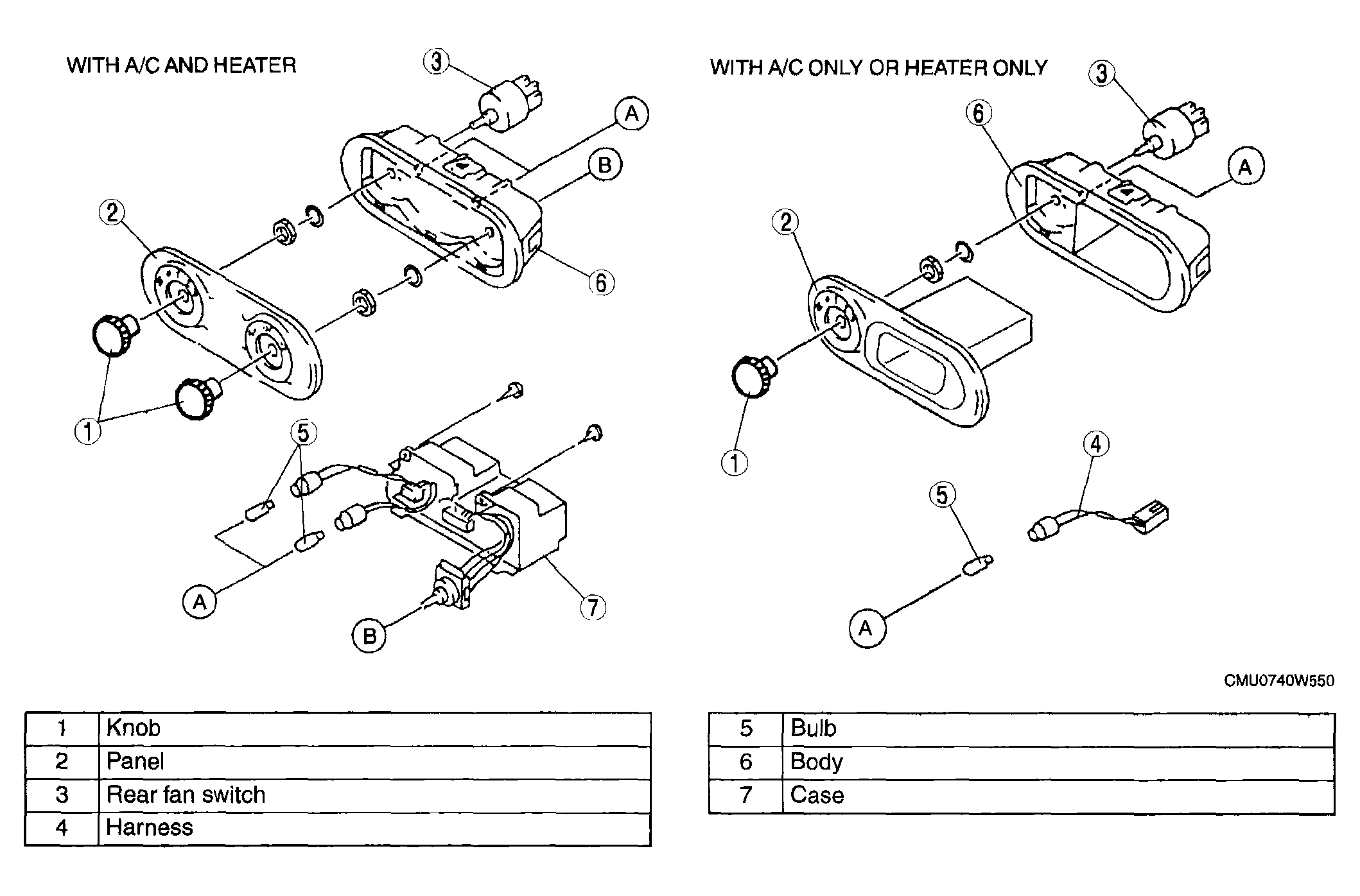

Fig 1: Exploded View Of Rear Climate Control Unit

Courtesy of MAZDA MOTORS CORP.
