Rear Climate Control Unit Removal/Installation

1. Remove the rear cup holder (RH).
2. Remove in the order indicated in Fig 1.
3. Install in the reverse order of removal.

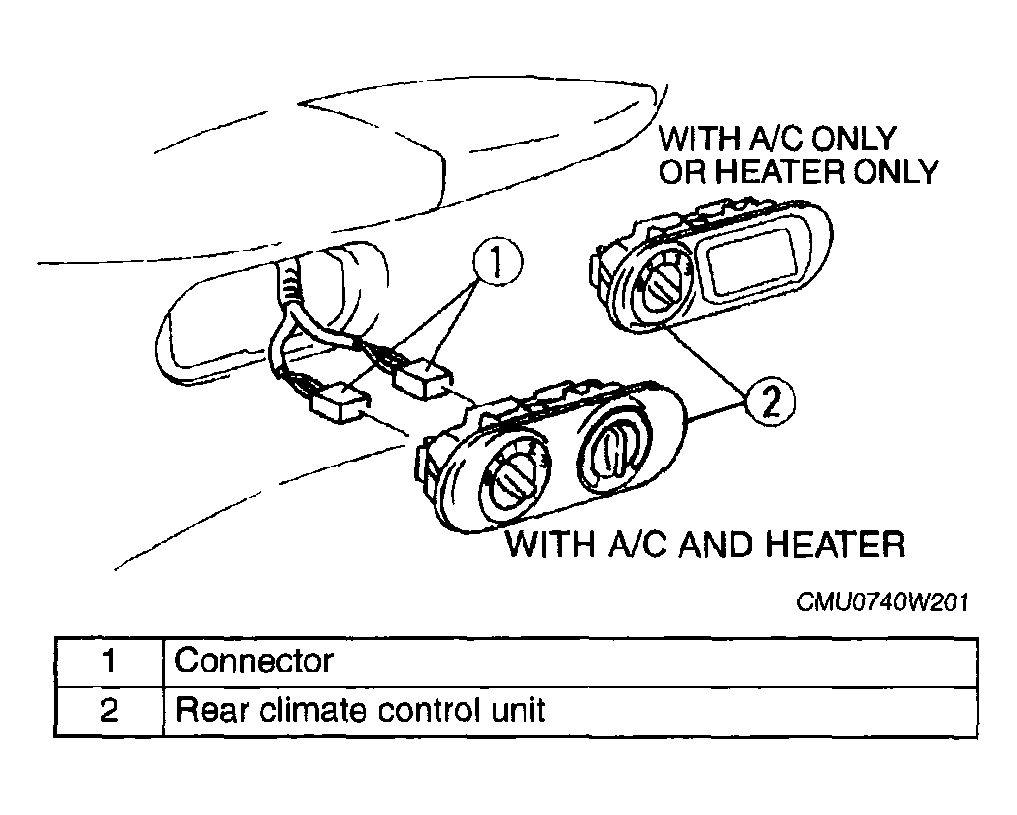

Fig 1: Identifying Rear Climate Control Unit

Courtesy of MAZDA MOTORS CORP.
