Latch Position Switch Connector End View

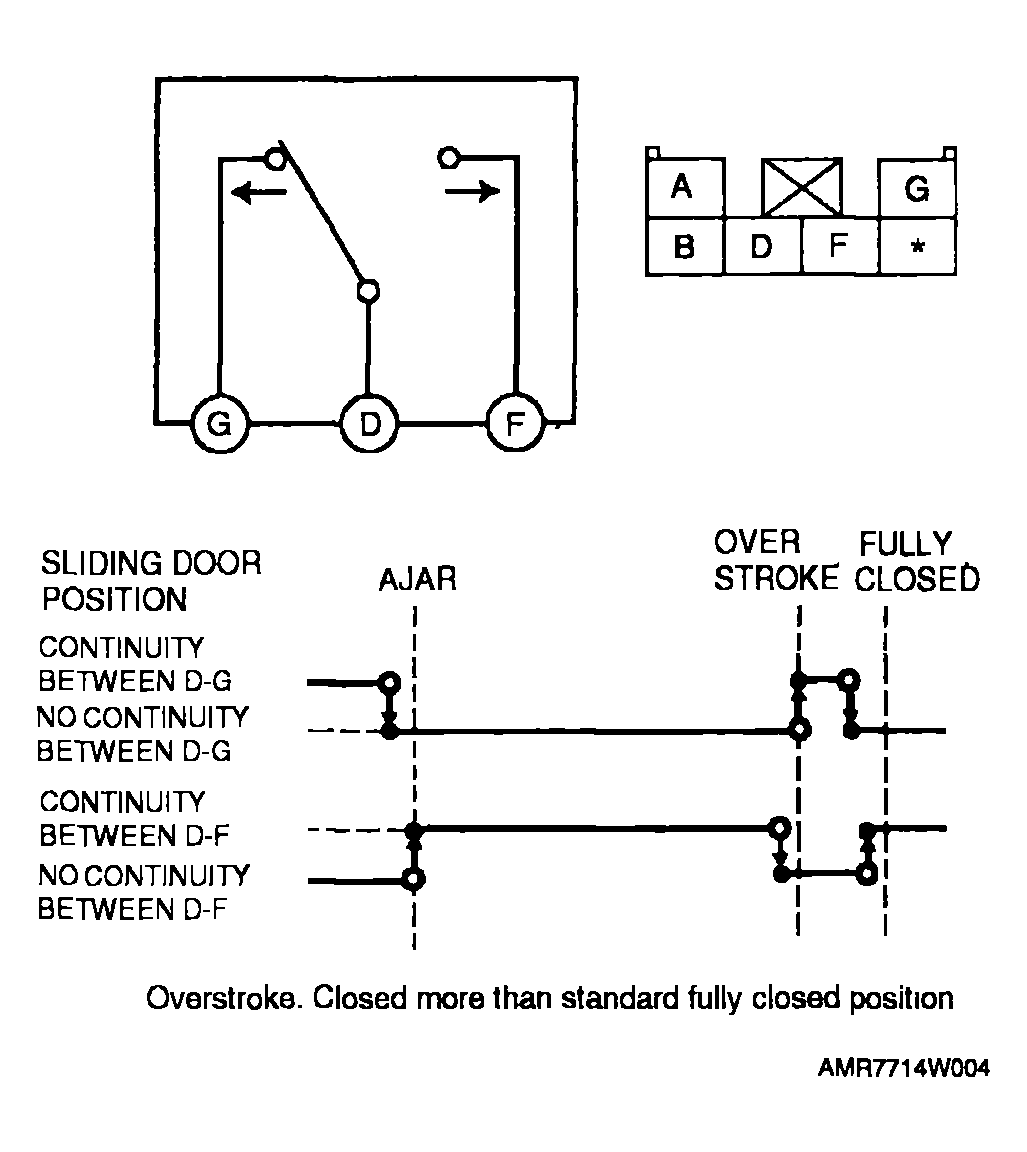

Fig 1: Latch Position Switch Connector End View
G04329391Courtesy of MAZDA MOTORS CORP.
