PSD Front Switch Connector End View
PSD Front Switch Connector End View

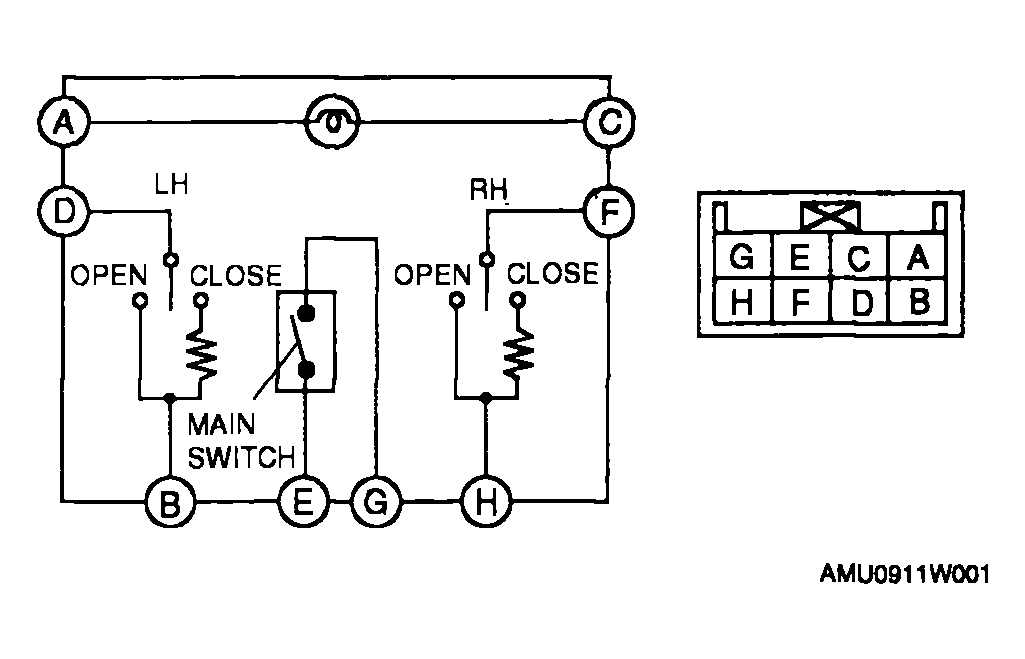

Fig 1: PSD Front Switch Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
