Clock Spring Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM]  or DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
  3. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
  4. Remove the column cover.
  5. Remove in the order indicated in Fig 1.

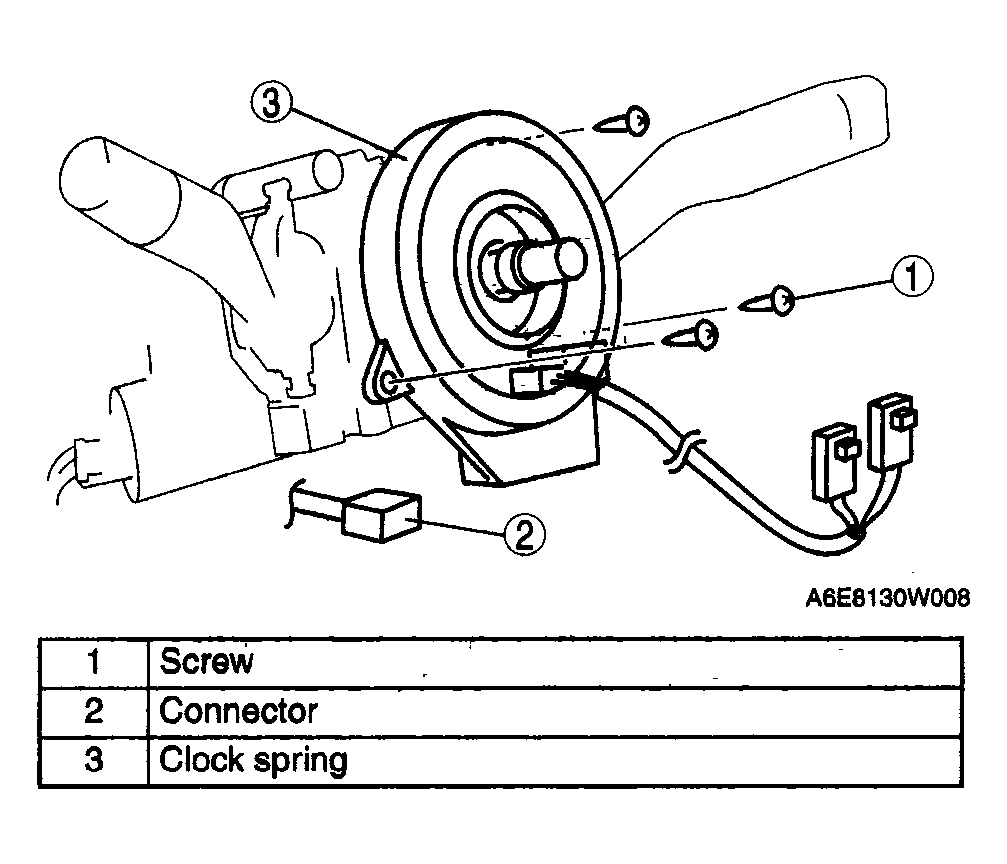

    Fig 1: Identifying Clock Spring
    G04329150Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
