Power Steering Oil Pump Removal/Installation

  1. Remove in the order indicated in Fig 1

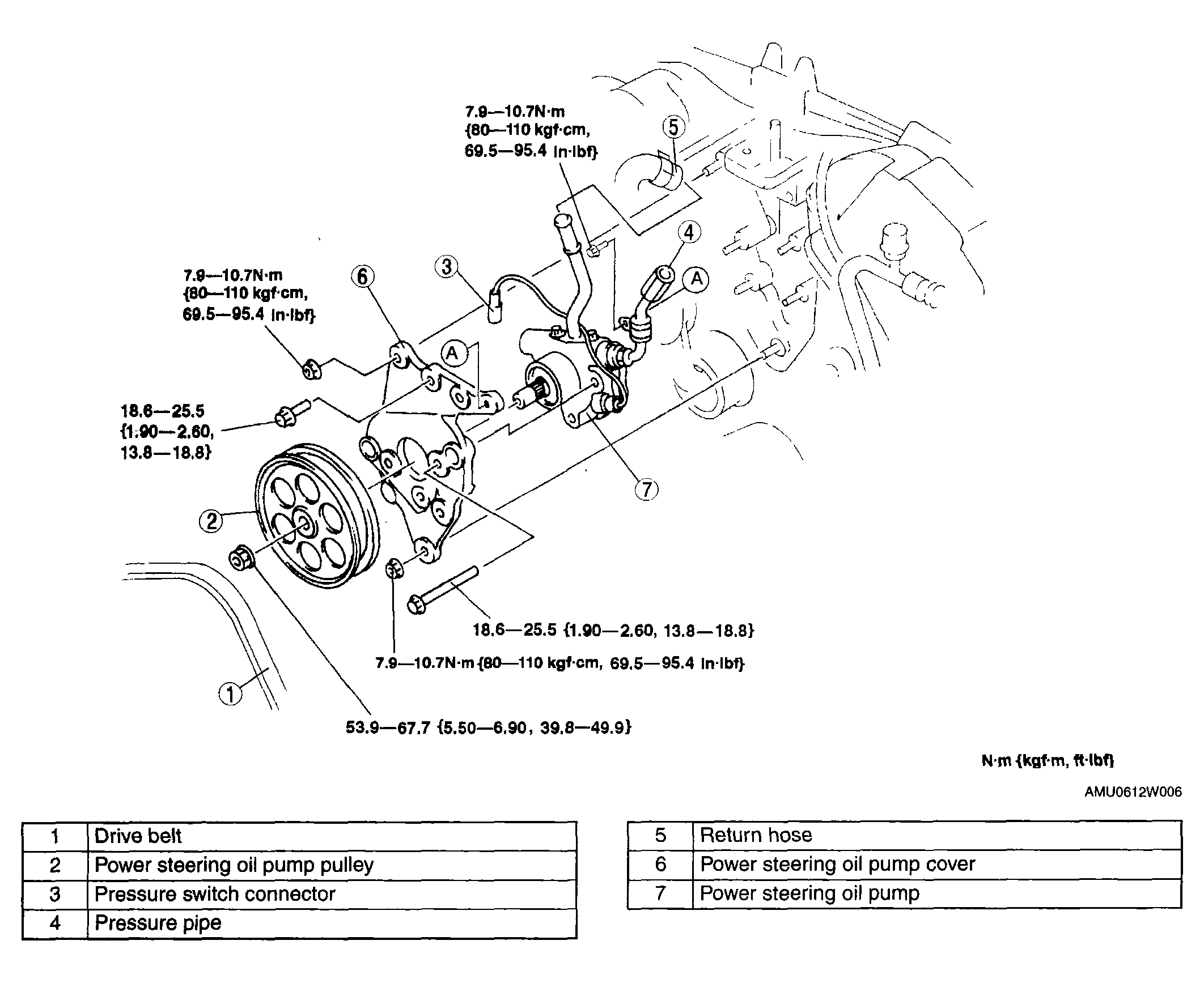

    2. Fig 1: Power Steering Oil Pump With Torque Specifications
    G04328892Courtesy of MAZDA MOTORS CORP.
  2. Remove the No.3 engine joint bracket. (See ENGINE REMOVAL/INSTALLATION [AJ] .)
  3. Install in the reverse order of removal.
  4. Adjust the No.3 joint bracket. (See ENGINE REMOVAL/INSTALLATION [AJ] .)
