Transverse Member Removal/Installation

  1. Remove in the order indicated in Fig 1.
  2. Install in the reverse order of removal.

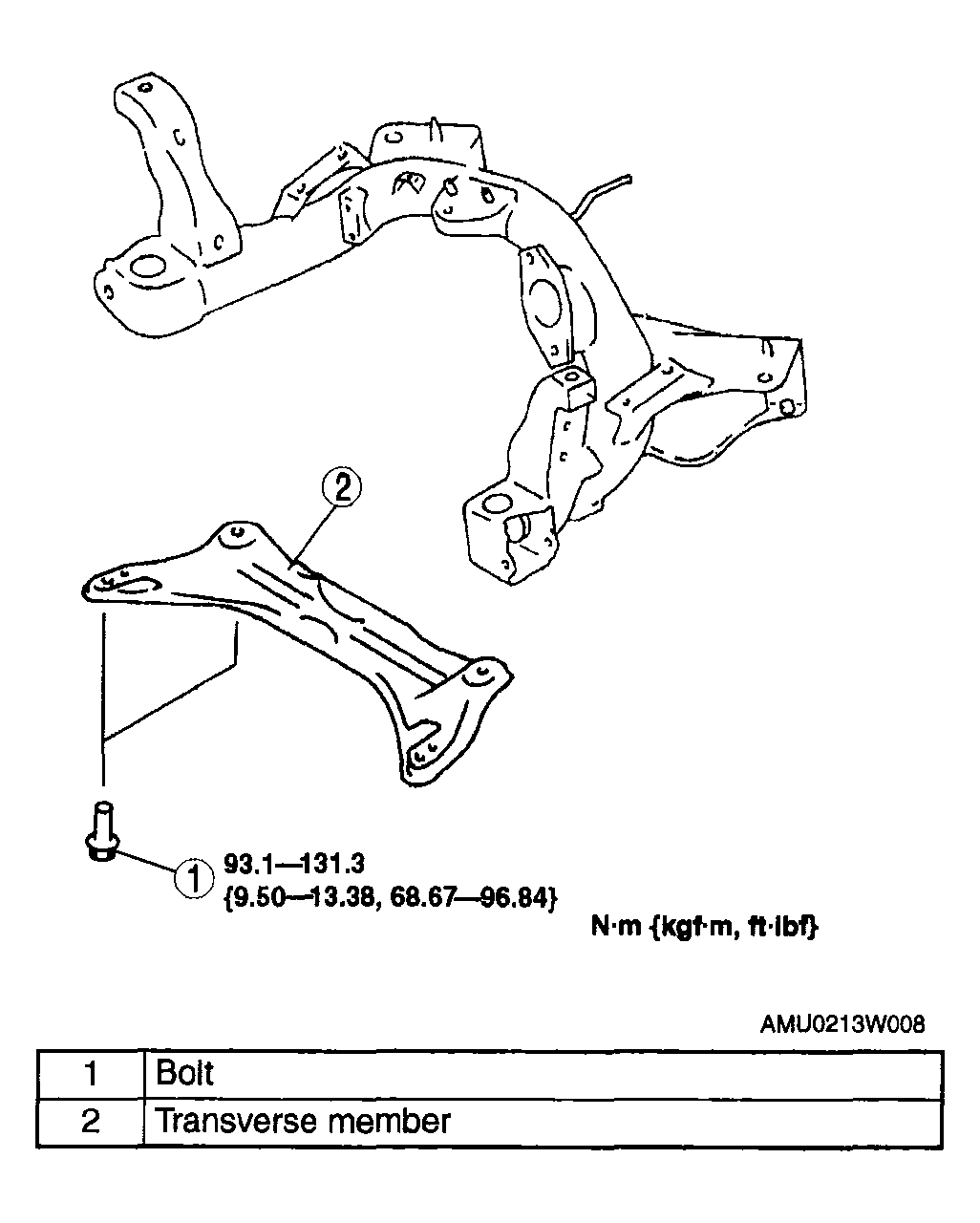

    Fig 1: Removing/Installing Transverse Member With Torque Specifications
    G04328419Courtesy of MAZDA MOTORS CORP.
