Vehicle speed signal

PCM terminal: 79 (+)-22 (-)
Oscilloscope setting: 1V/DIV (Y), 25ms/DIV(X), DC range
Vehicle condition: Driving speed 60 km/h [37 mph]

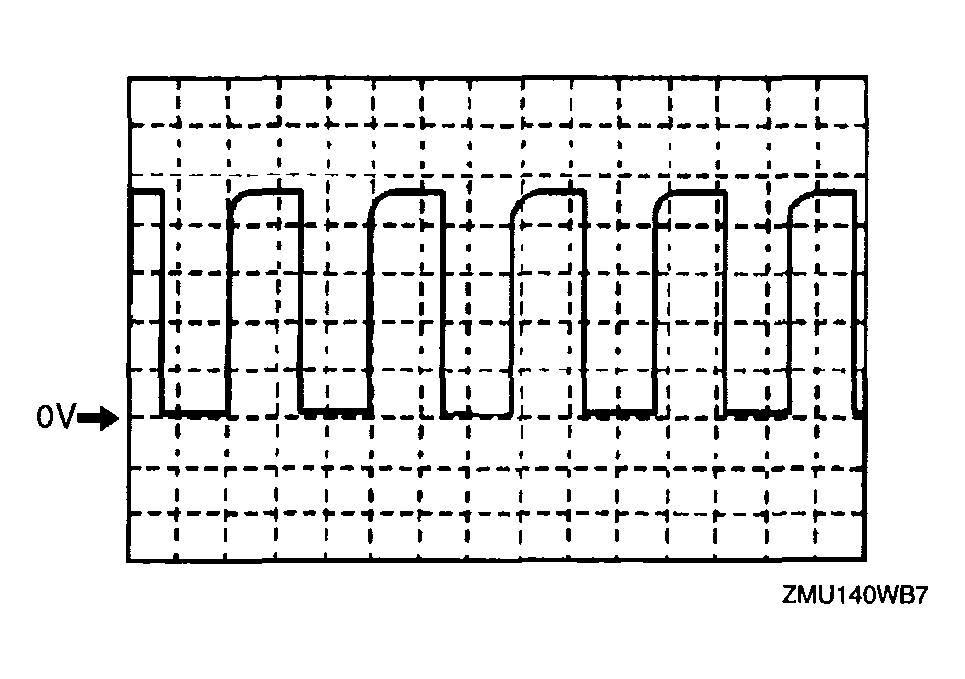

Fig 1: Identifying Vehicle Speed Signal Waveform

G04328318

Courtesy of MAZDA MOTORS CORP.
