Easy Closure Control Module Inspection

1. Remove the easy closure control module.
2. Inspect for continuity between the latch position switch terminals using an ohmmeter.
   • If not as specified, replace the easy closure control module.

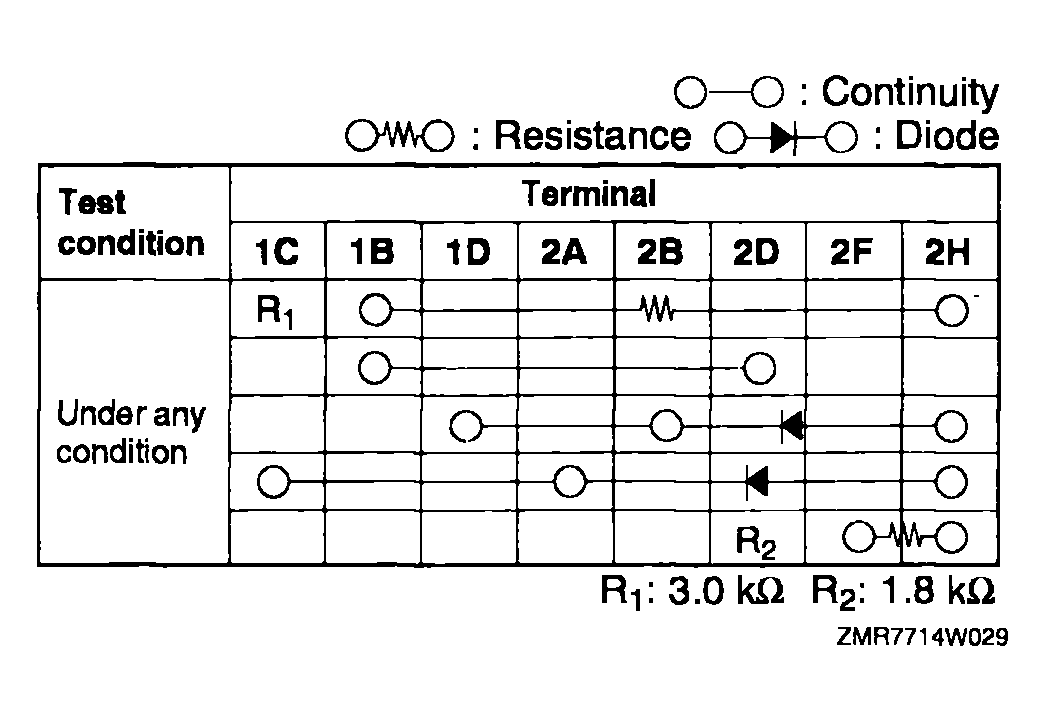

Fig 1: Easy Closure Control Module Continuity Table

Courtesy of MAZDA MOTORS CORP.

Fig 2: Easy Closure Control Module Connector Terminals

Courtesy of MAZDA MOTORS CORP.
