Front Door Lock And Opener Removal/Installation

  1. Close the front door glass completely.
  2. Disconnect the negative battery cable.
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in Fig 1.

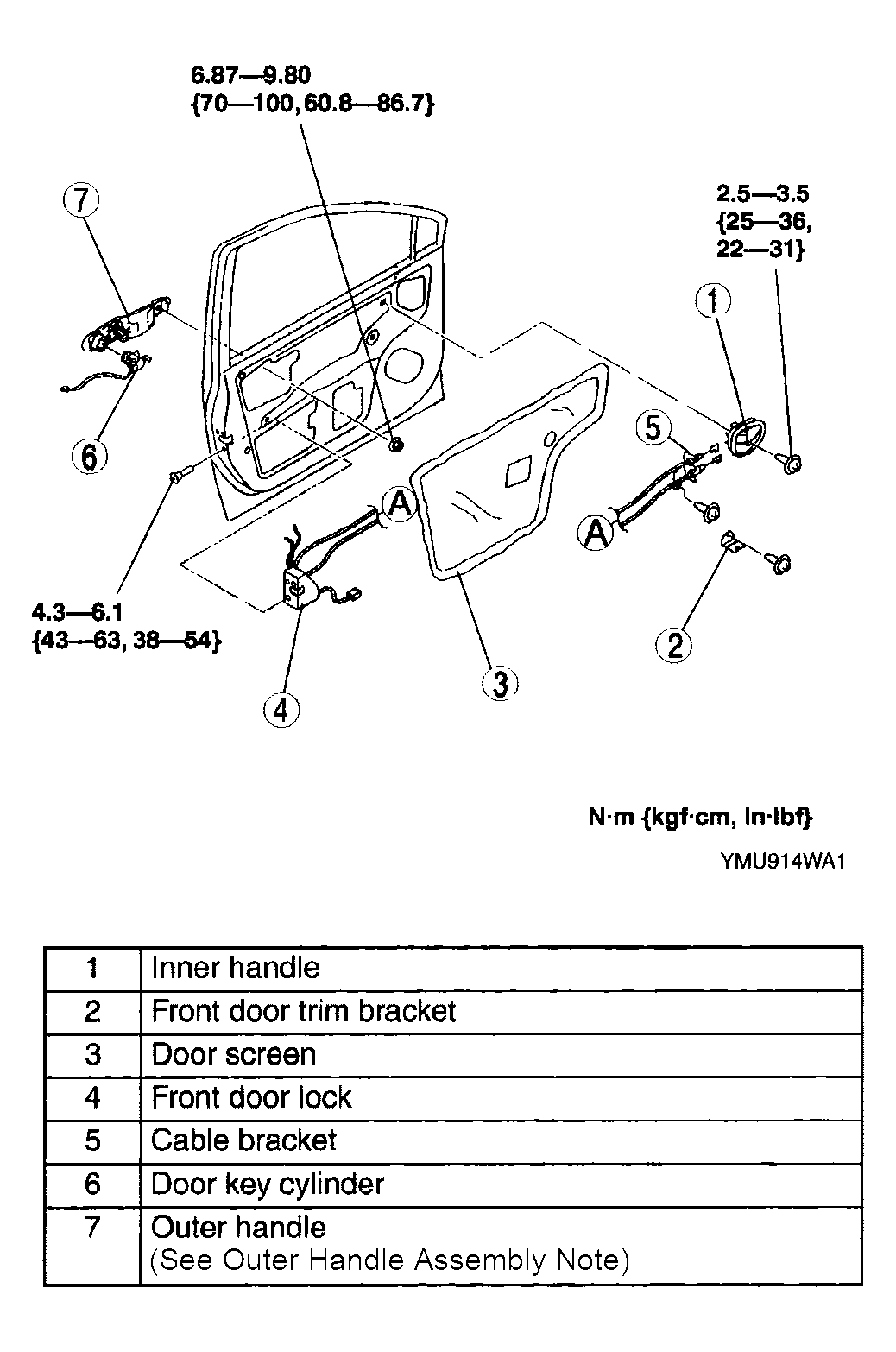

    Fig 1: Front Door Lock And Opener With Torque Specifications
    G04329507Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
