Locknut Installation Note

  1. Install a new locknut and stake it as shown.

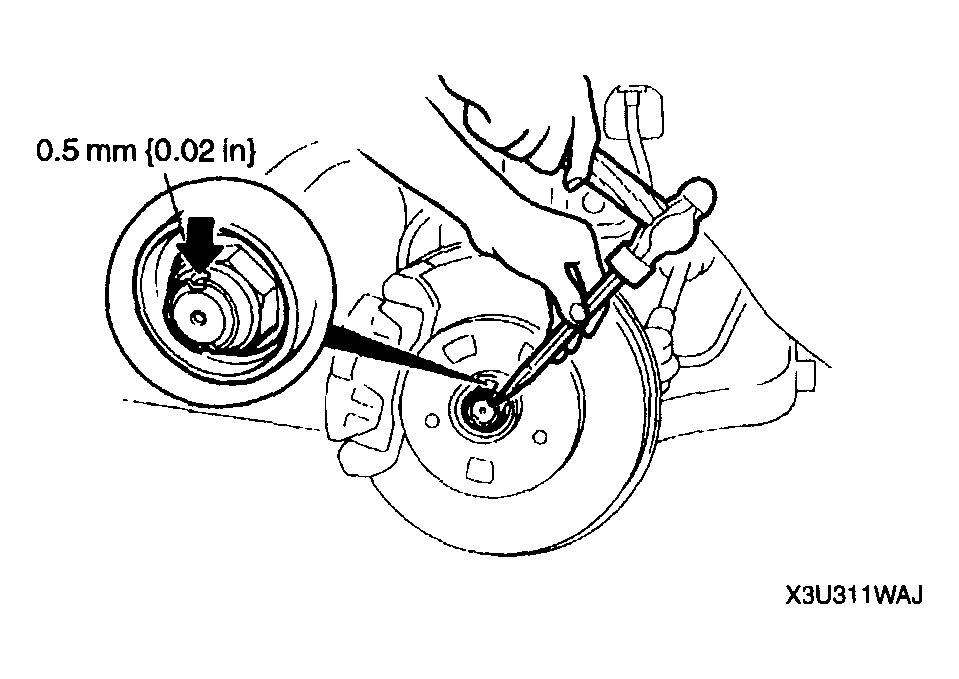

Fig 1: Installing Locknut
G04328462Courtesy of MAZDA MOTORS CORP.
