Generator Inner Parts: Rectifier

1. Inspect for continuity of the diodes using an ohmmeter.
   • If not as specified, replace the rectifier.

SPECIFICATION

Negative	Positive	Continuity
E	P1, P2, P3, P4, P5, P6	Yes
B		No
P1, P2, P3, P4, P5, P6	E	No
	B	Yes

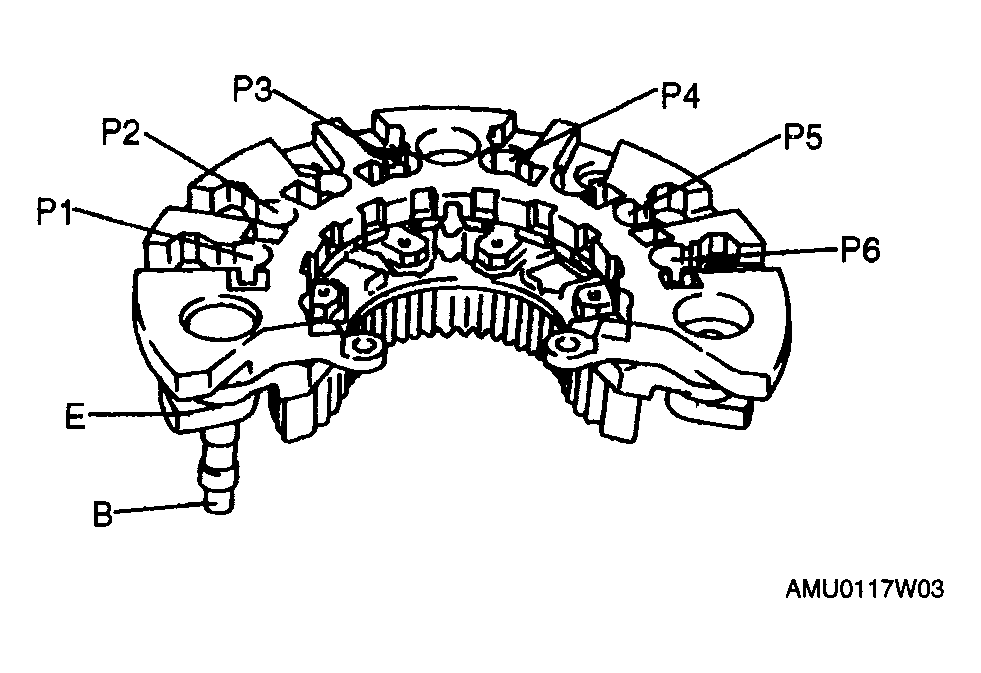

Fig 1: Identifying Rectifier Terminals

Courtesy of MAZDA MOTORS CORP.
