Engine Coolant Level Inspection

NOTE:

• If the "FL22" mark is shown on or near the cooling system cap, use FL22 type engine coolant.
• FL22 type engine coolant is shipped as a diluted solution (55% coolant, 45% water). Use the solution as is when replacing coolant.

Fig 1: Identifying Proper Cooling System Cap

Courtesy of MAZDA MOTORS CORP.

1. Verify that the coolant level in the coolant reservoir is between the F and L marks.
   • If the engine coolant level is below L, remove the cooling system cap and add coolant. (See COOLING SYSTEM SERVICE WARNINGS .)

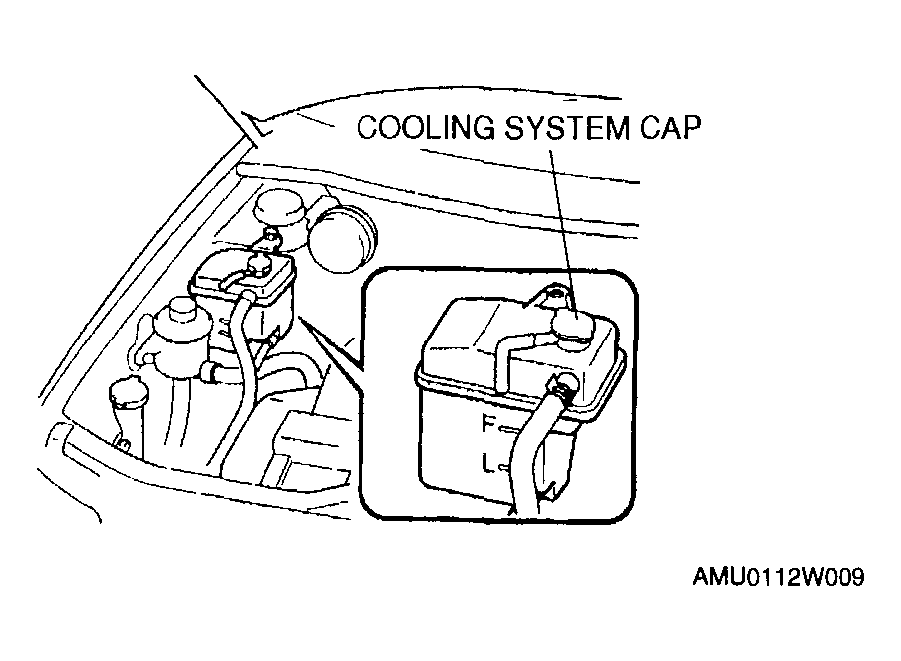

Fig 2: Identifying Cooling System Cap

Courtesy of MAZDA MOTORS CORP.
