MPV LX
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Symptom Troubleshooting [Engine Control System AJ)
›
Symptom Troubleshooting Wiring Diagram
›
With Rear HO2S Model
›
With immobilizer system
With immobilizer system

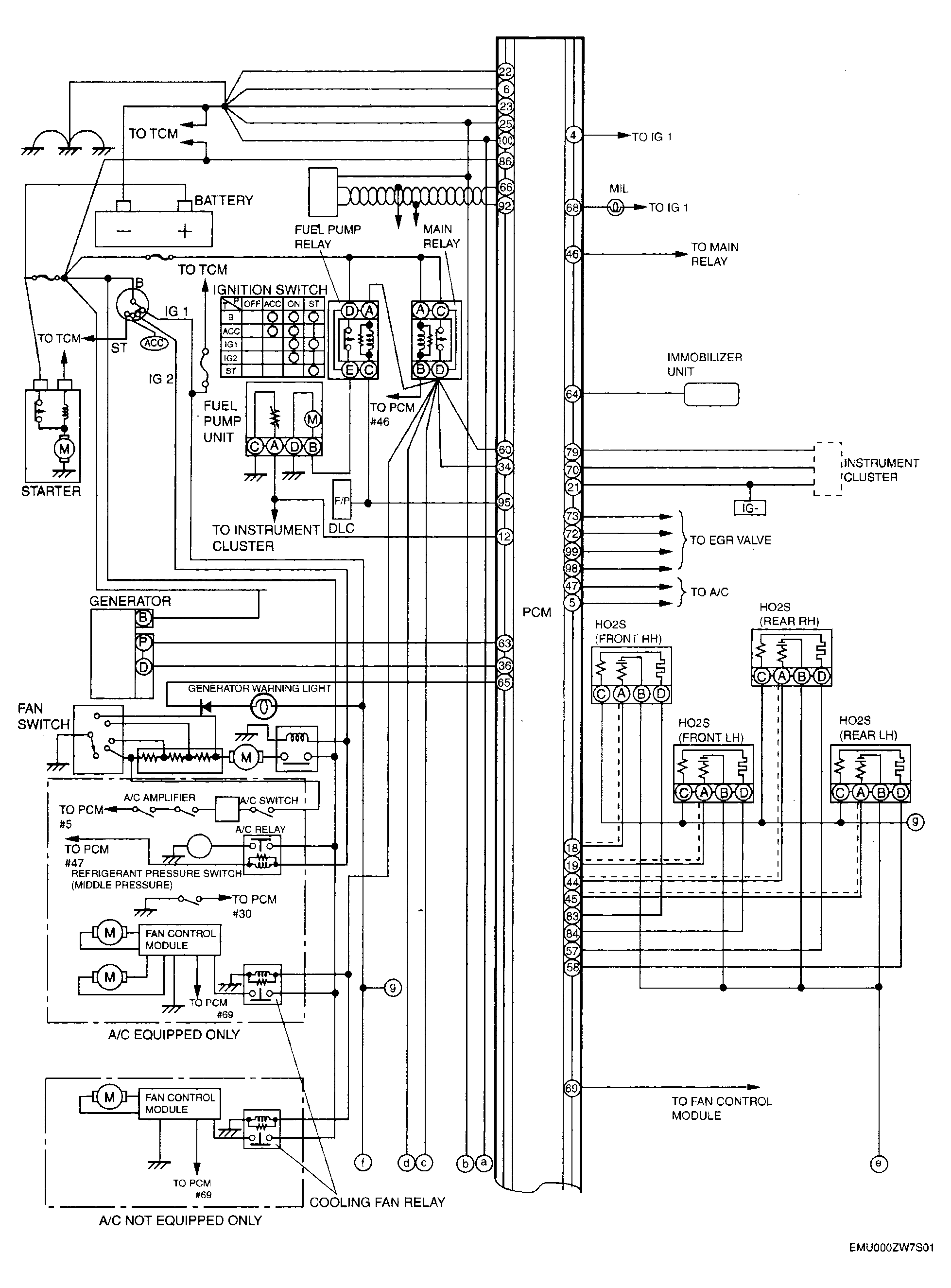

Fig 1: Symptom Troubleshooting Wiring Diagram [AJ] - With Rear HO2S Model - With Immobilizer System (1 of 2)
Courtesy of MAZDA MOTORS CORP.

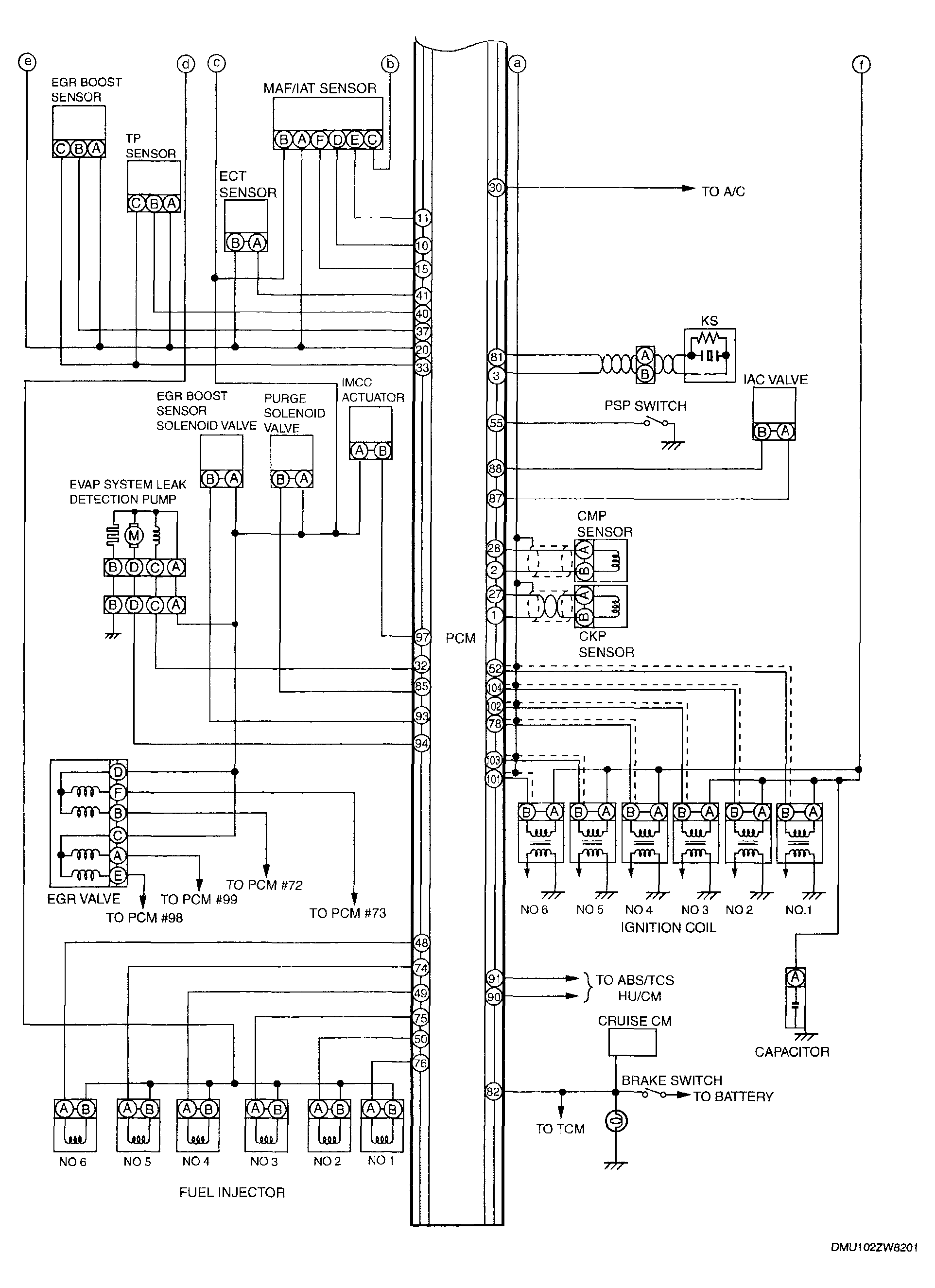

Fig 2: Symptom Troubleshooting Wiring Diagram [AJ] - With Rear HO2S Model - With Immobilizer System (2 of 2)
Courtesy of MAZDA MOTORS CORP.
