Automatic Transaxle [Service, Removal & Installation]
›
Automatic Transaxle Control System Wiring Diagram
Automatic Transaxle Control System Wiring Diagram

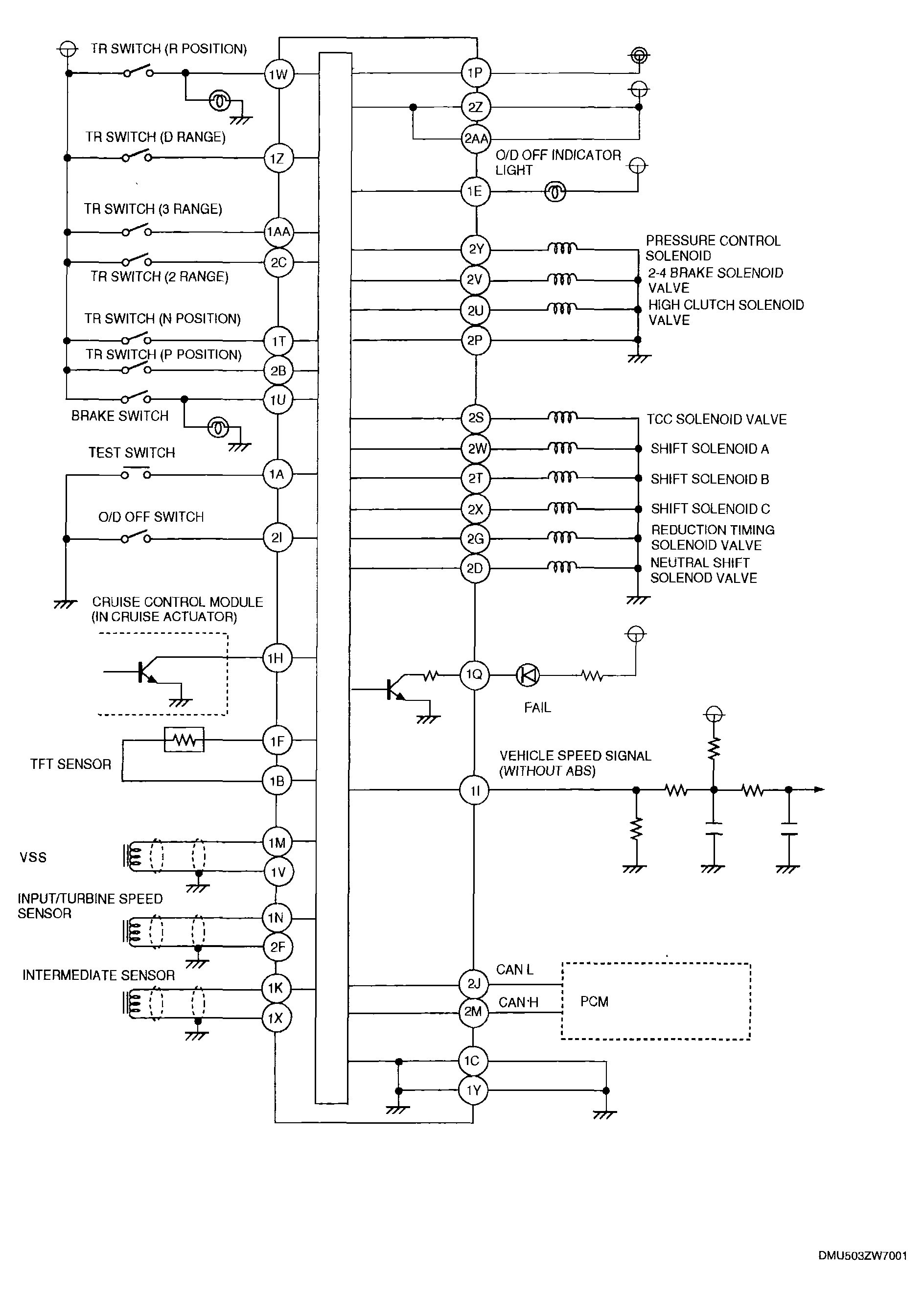

Fig 1: Automatic Transaxle Control System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
