Oil Cooler Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in Fig 1.
  2. Assemble in the reverse order of disassembly.

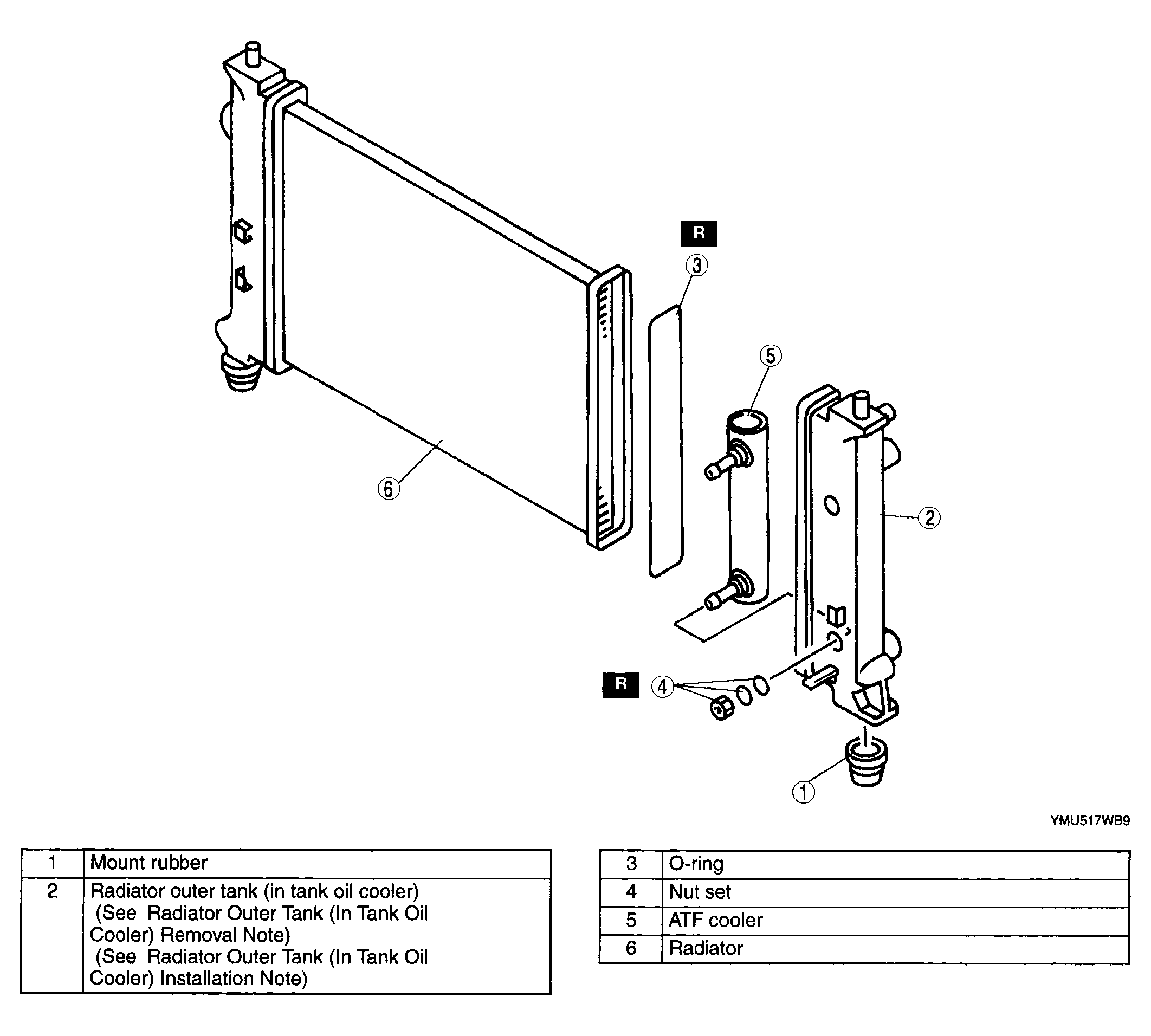

    Fig 1: Exploded View Of Oil Cooler
    G04328796Courtesy of MAZDA MOTORS CORP.
