Coil Antenna Removal/Installation [With Advanced Keyless System]: Notes
NOTE:
- Do not remove the coil antenna unless you are replacing it.
- When only the coil antenna is replaced, the immobilizer system reprogram procedure is not necessary.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
- Remove the column cover.

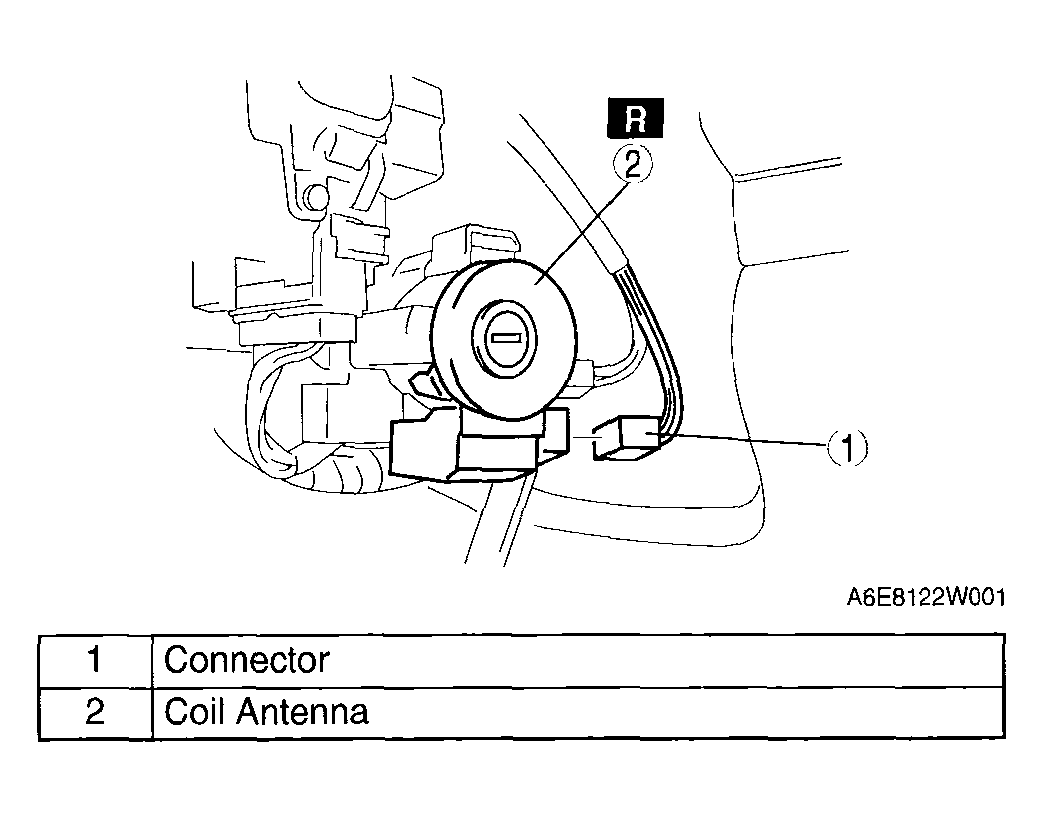

- Remove in the order indicated in Fig 1 .
- Install in the reverse order of removal.
