Driver-side/passenger-side Door

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)
  3. Remove the screws.
  4. Disconnect the connector, then remove the keyless antenna.

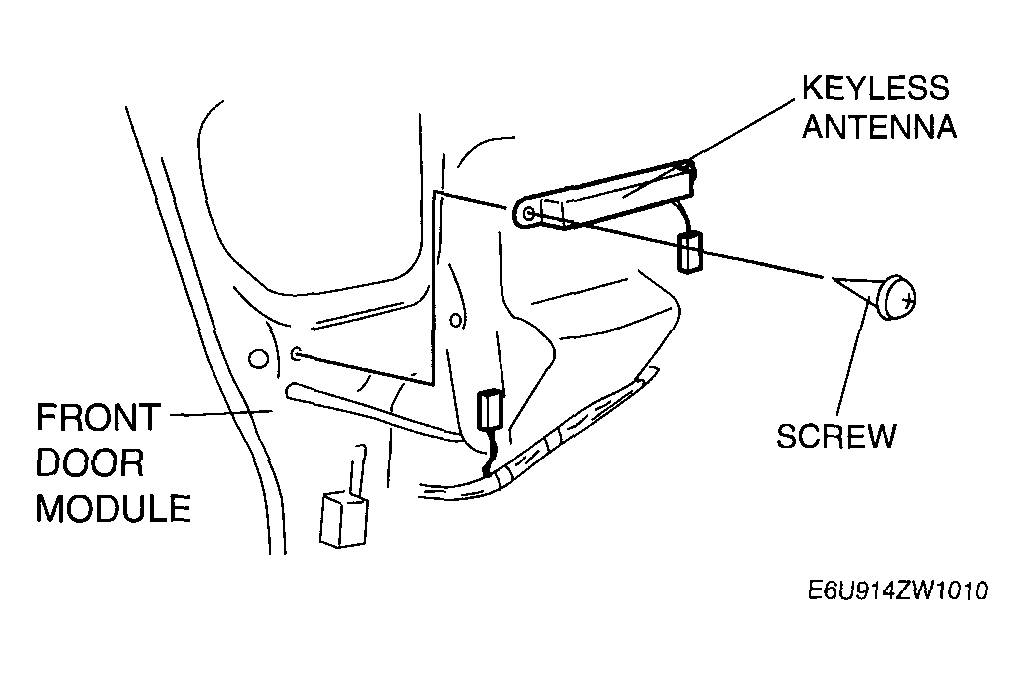

    5. Fig 1: Removing/Installing Keyless Antenna
    G04323541Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
