Interior, Trunk

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove the nuts.
  4. Disconnect the connector, then remove the keyless antenna.

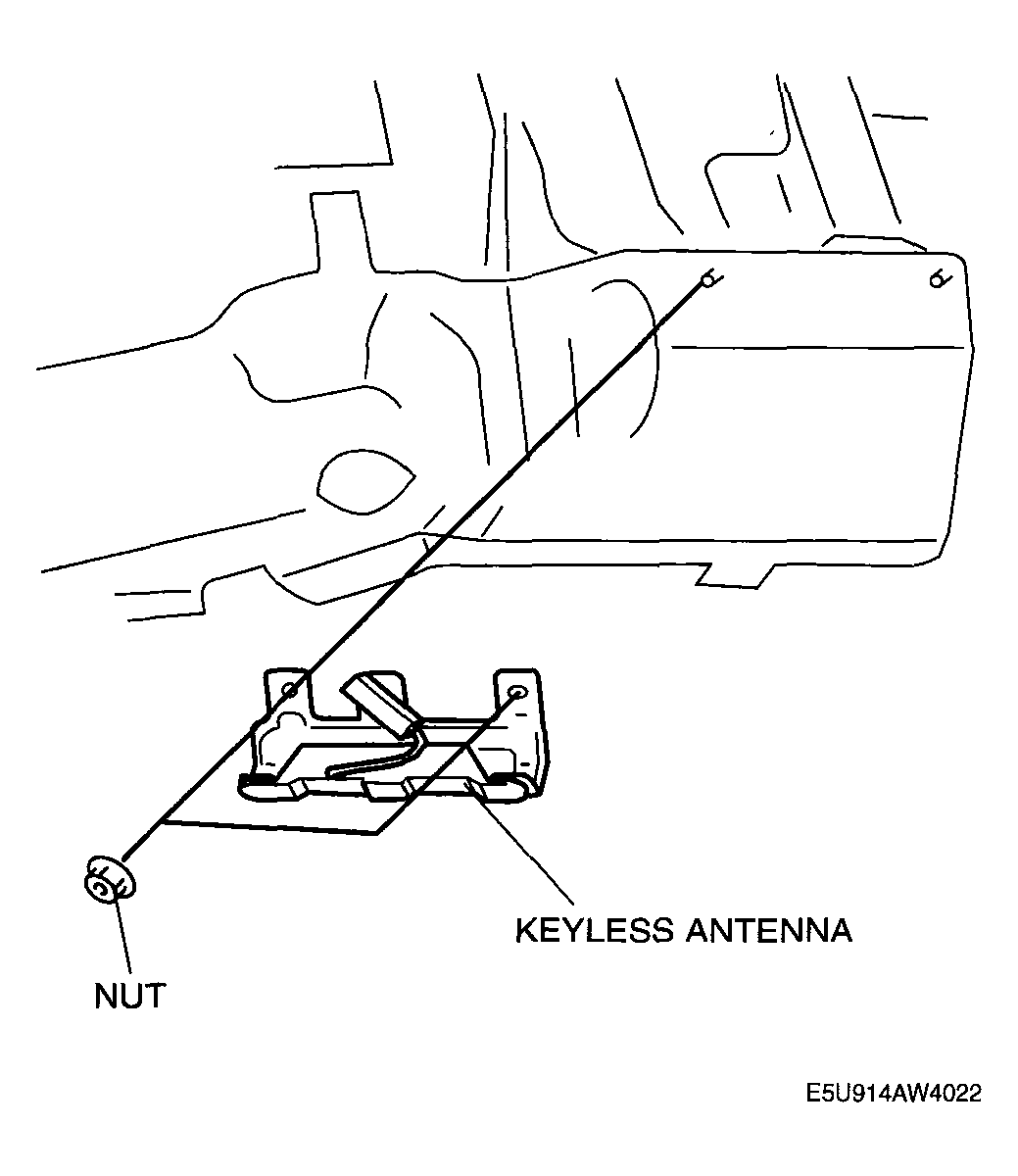

    5. Fig 1: Removing Keyless Antenna - Interior Trunk
    G04323546Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
