Keyless Beeper Removal/Installation

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove the nuts.
  4. Disconnect the connector.
  5. Remove the keyless beeper.

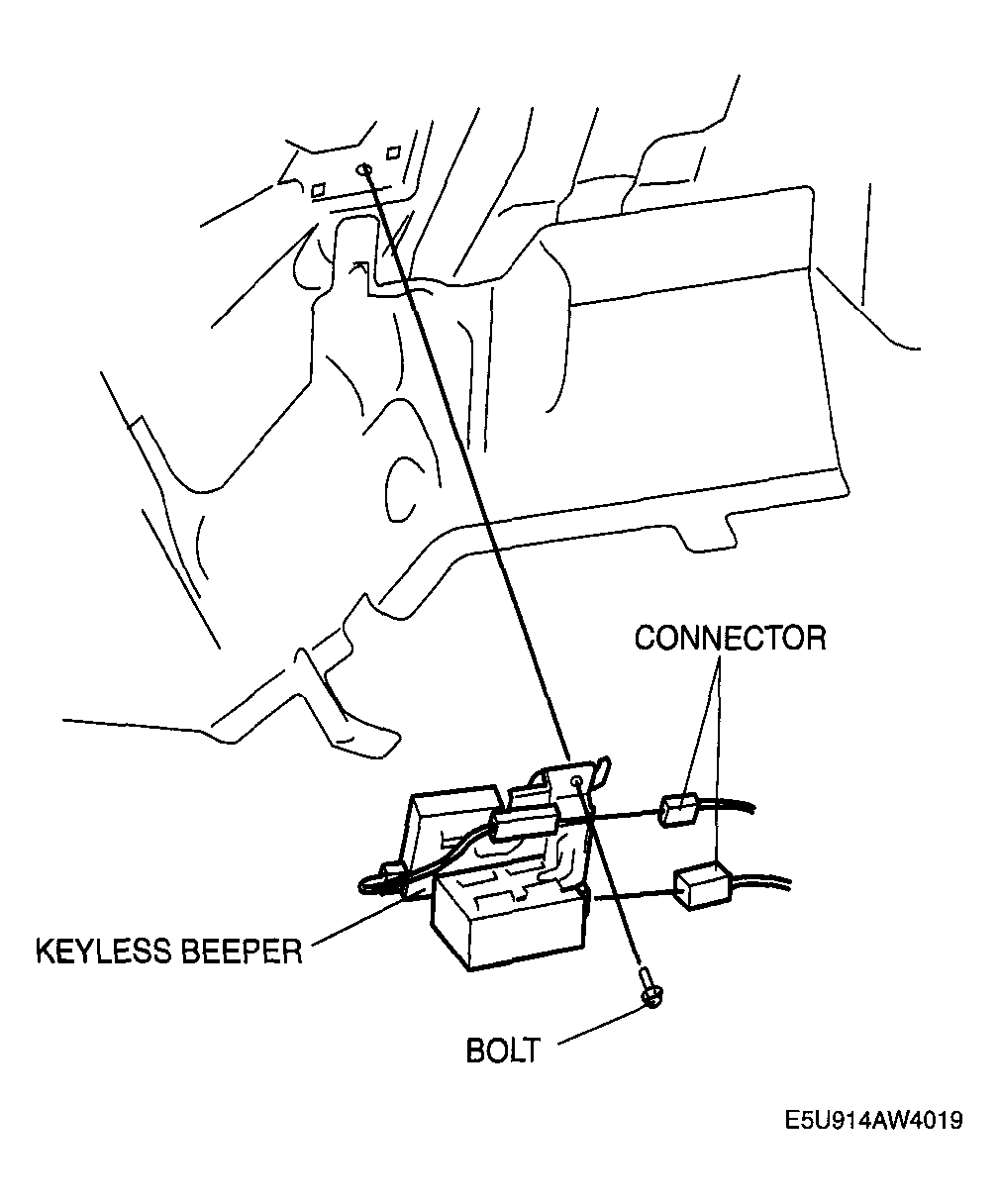

    6. Fig 1: Removing/Installing Keyless Beeper
    G04323547Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
