Keyless Receiver Removal/Installation: Rear

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove the nuts.
  4. Disconnect the connector.
  5. Remove the keyless receiver (rear).

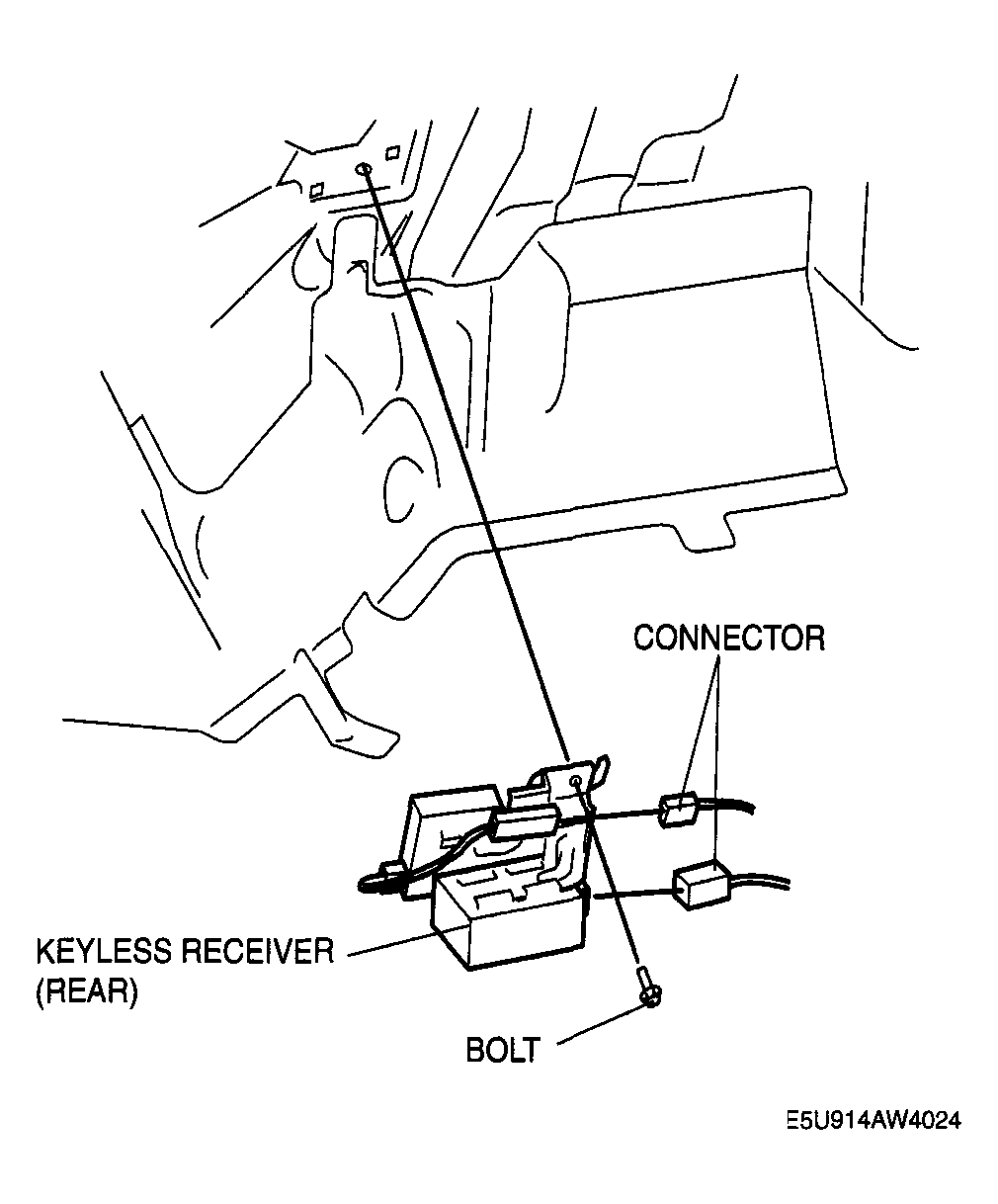

    6. Fig 1: Removing/Installing Keyless Receiver - Rear
    G04323539Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
