Trunk Lid Opener Cancel Switch Inspection

Remove the trunk lid open cancel switch.
Inspect for continuity between the trunk lid open cancel switch terminals.
- If not as specified, replace the trunk lid open cancel switch.

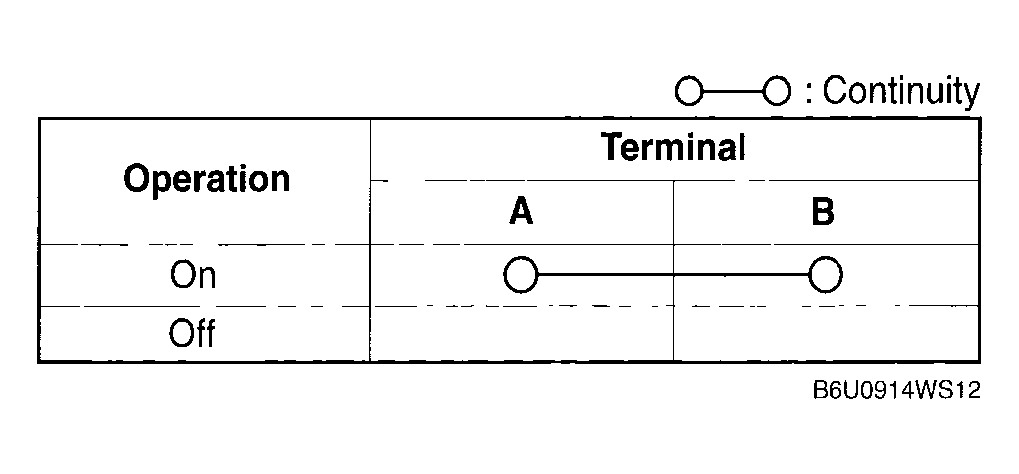

Fig 1: Trunk Lid Opener Cancel Switch Continuity Table
Courtesy of MAZDA MOTORS CORP.

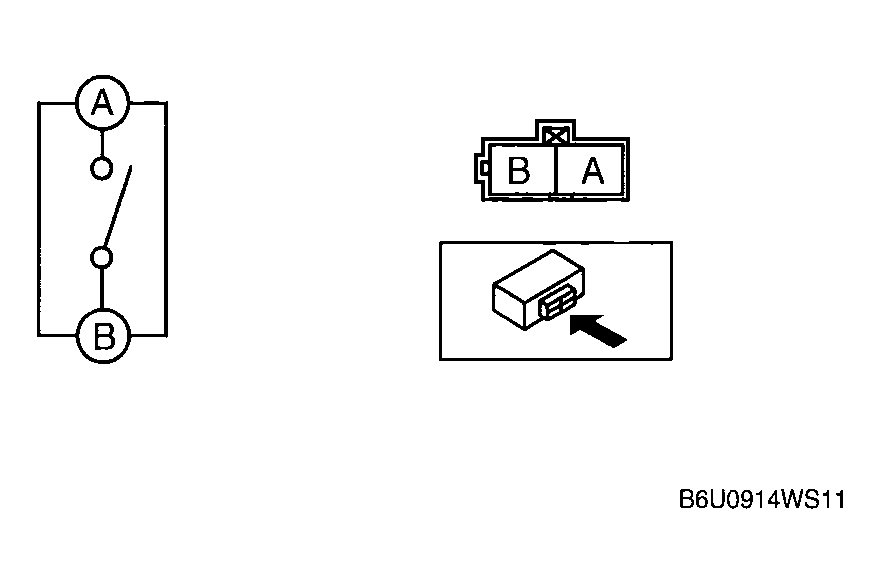

Fig 2: Inspecting Trunk Lid Opener Cancel Switch
Courtesy of MAZDA MOTORS CORP.
