Trunk Lid Striker Removal/Installation

  1. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  2. Remove the bolts, then remove the trunk lid striker.

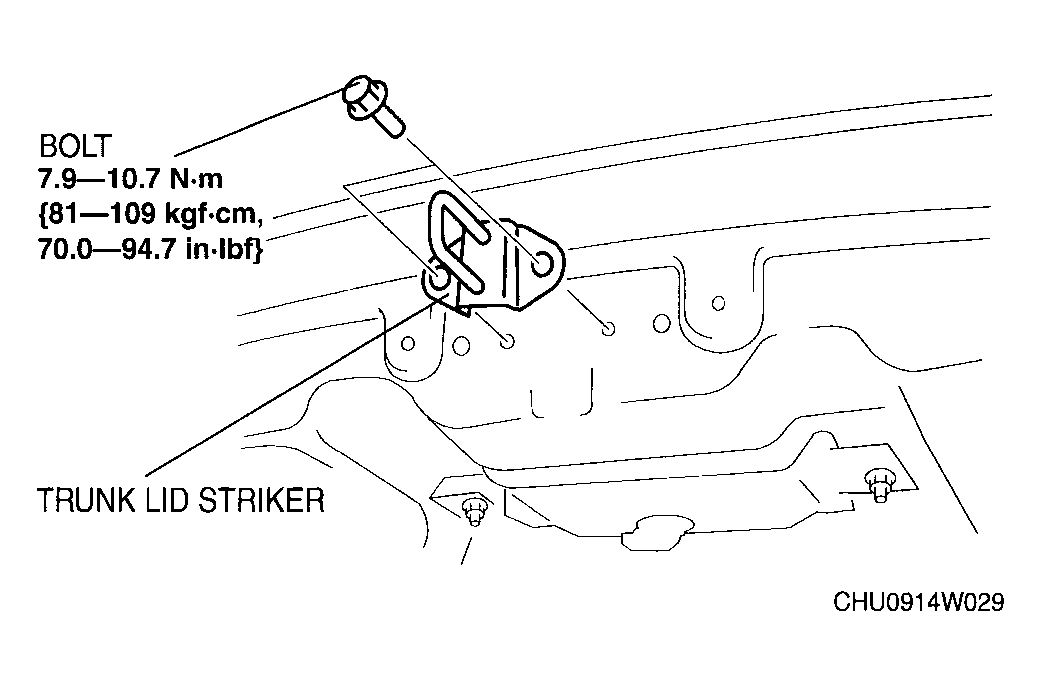

    3. Fig 1: Removing/Installing Trunk Lid Striker With Torque Specifications
    G04323526Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
