Keyless Entry System Wiring Diagram [Advanced Keyless System]
Keyless Entry System Wiring Diagram [Advanced Keyless System]

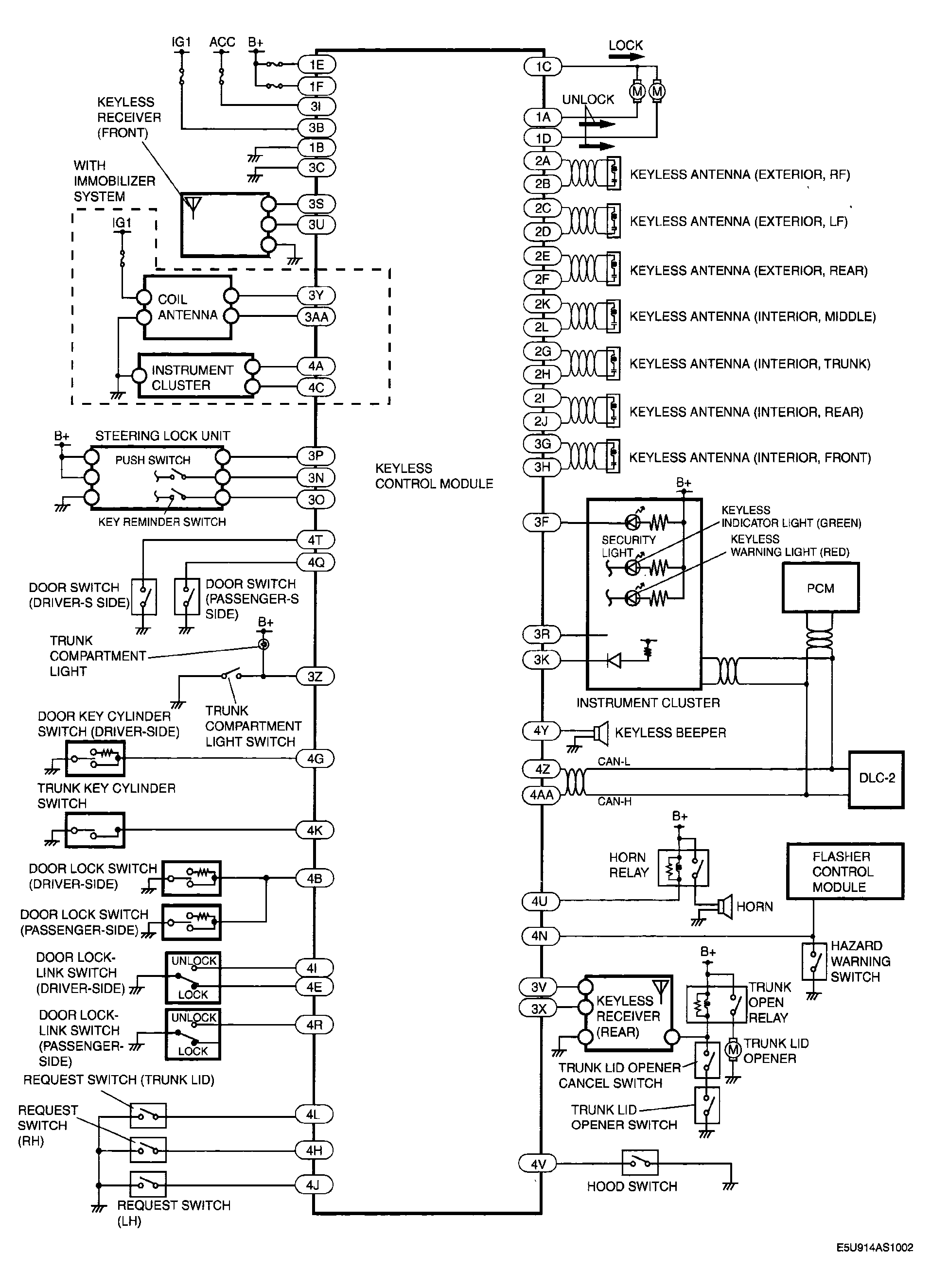

Fig 1: Keyless Entry System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
