Power Outer Mirror Switch Inspection

Inspect for continuity between the power outer mirror switch terminals using an ohmmeter.
- If not as specified, replace the power outer mirror switch.

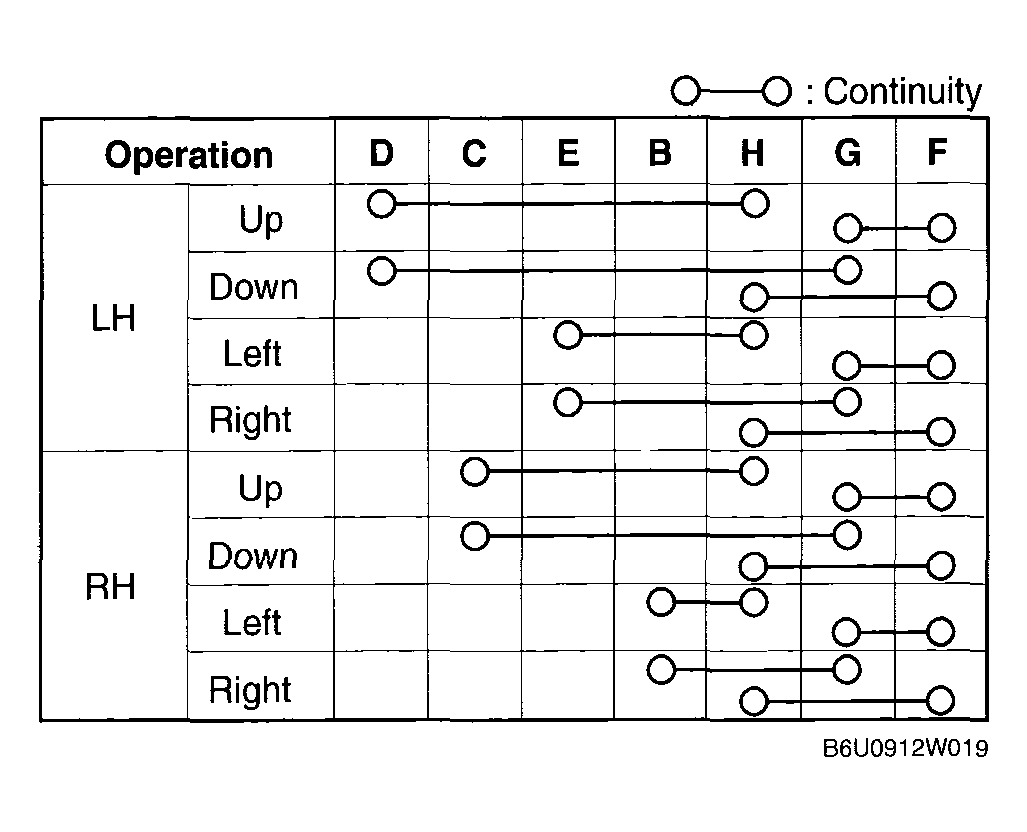

Fig 1: Power Outer Mirror Continuity Table
Courtesy of MAZDA MOTORS CORP.

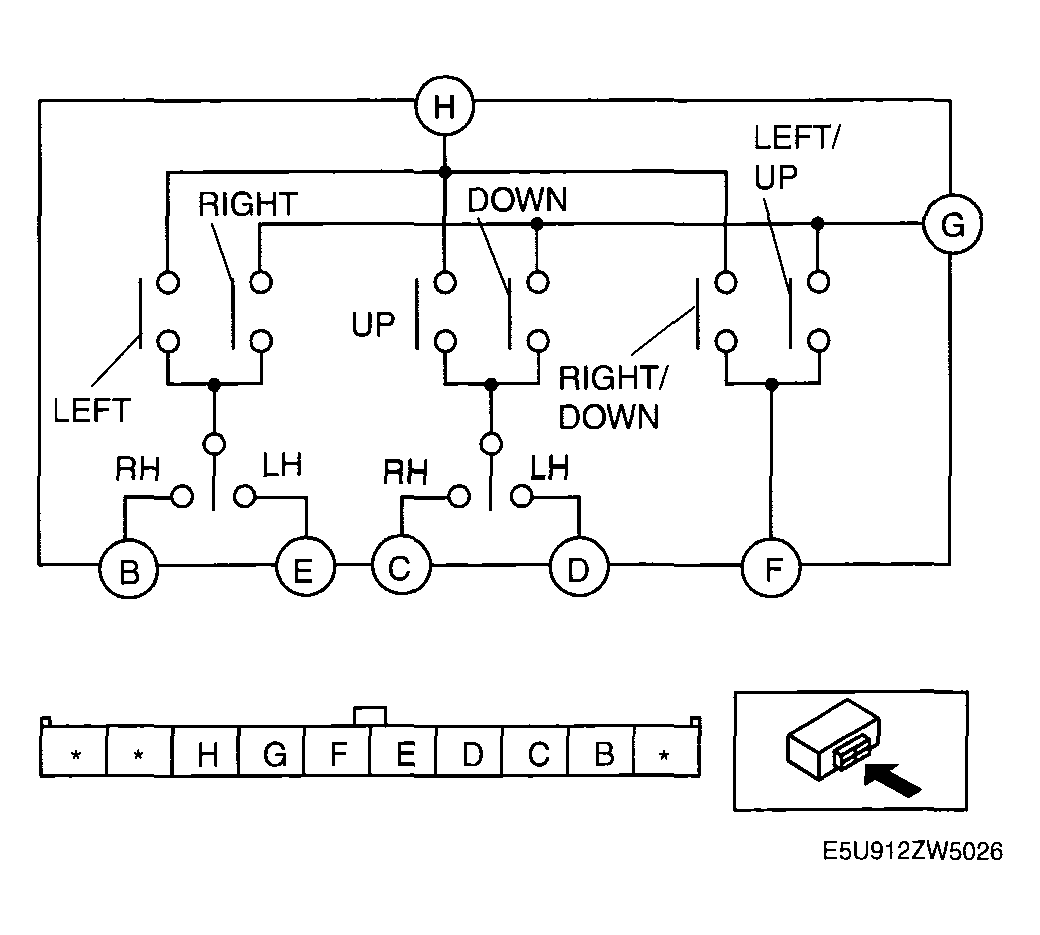

Fig 2: Power Outer Mirror Switch Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
