Front Abs Wheel-Speed Sensor Removal/Installation

Remove the mudguard.
Remove in the order indicated in the table.
Install in the reverse order of removal.

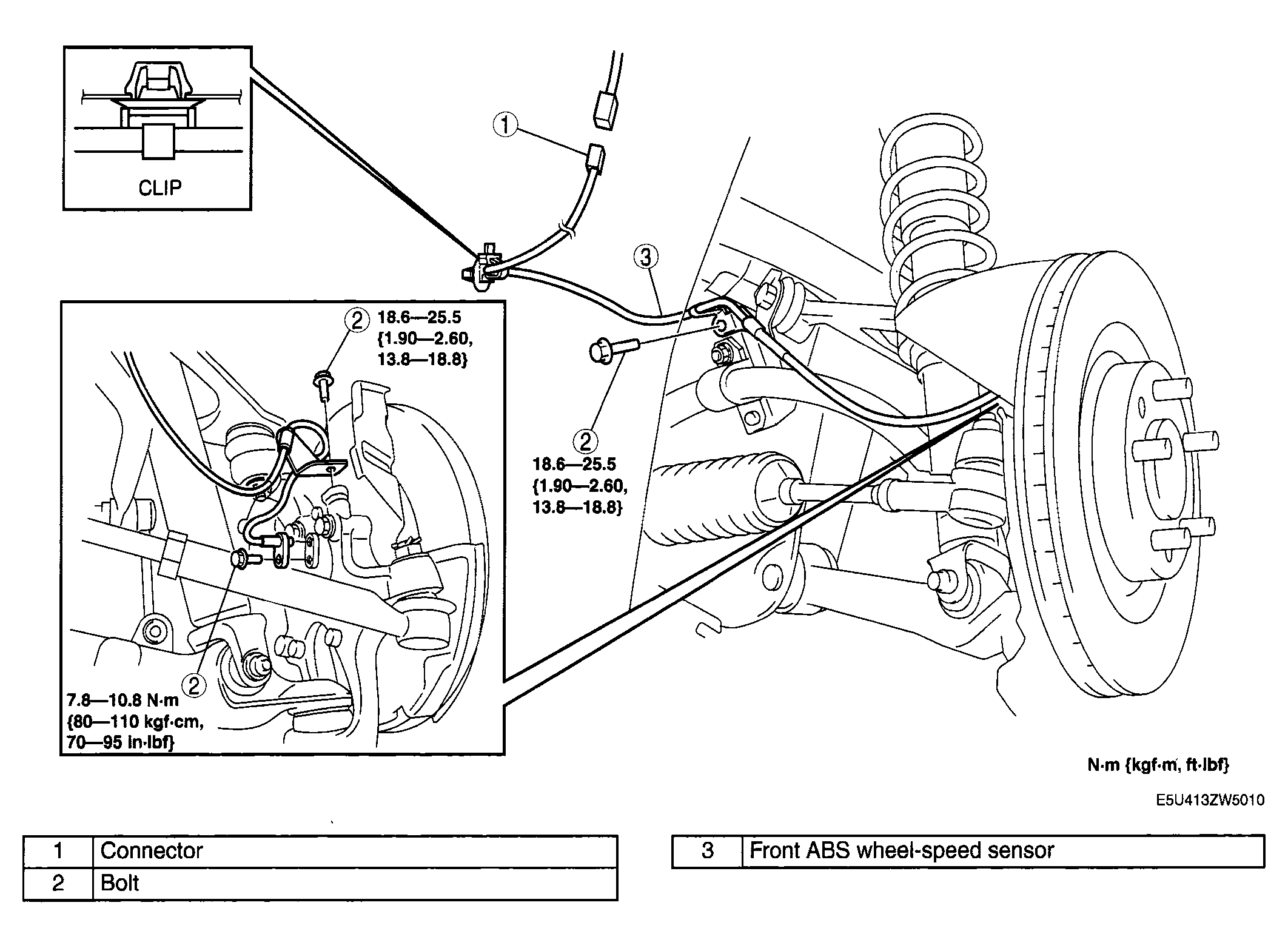

Fig 1: Front ABS Wheel-Speed Sensor Removing/Installing Steps With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
