Clearance Inspection

Verify the clearance between the ABS sensor rotor and the ABS wheel-speed sensor.
- If there is any malfunction, check for improper installation, and replace if necessary.
Clearance

0.8-1.6 mm {0.032-0.062 in}

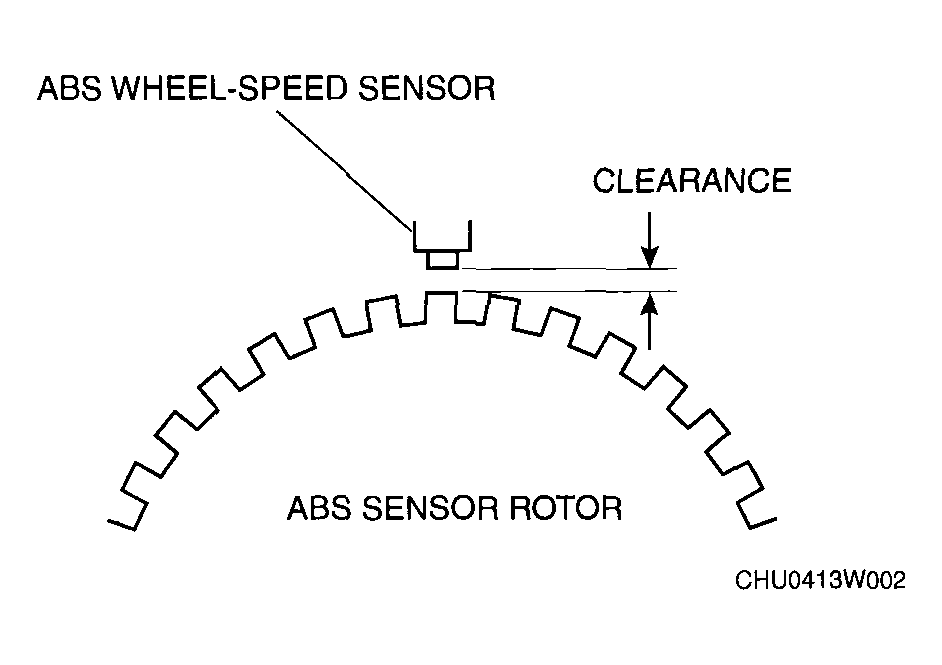

Fig 1: Inspecting ABS Sensor-To-Rotor Clearance
Courtesy of MAZDA MOTORS CORP.
