Dynamic Stability Control System Wiring Diagram
Dynamic Stability Control System Wiring Diagram

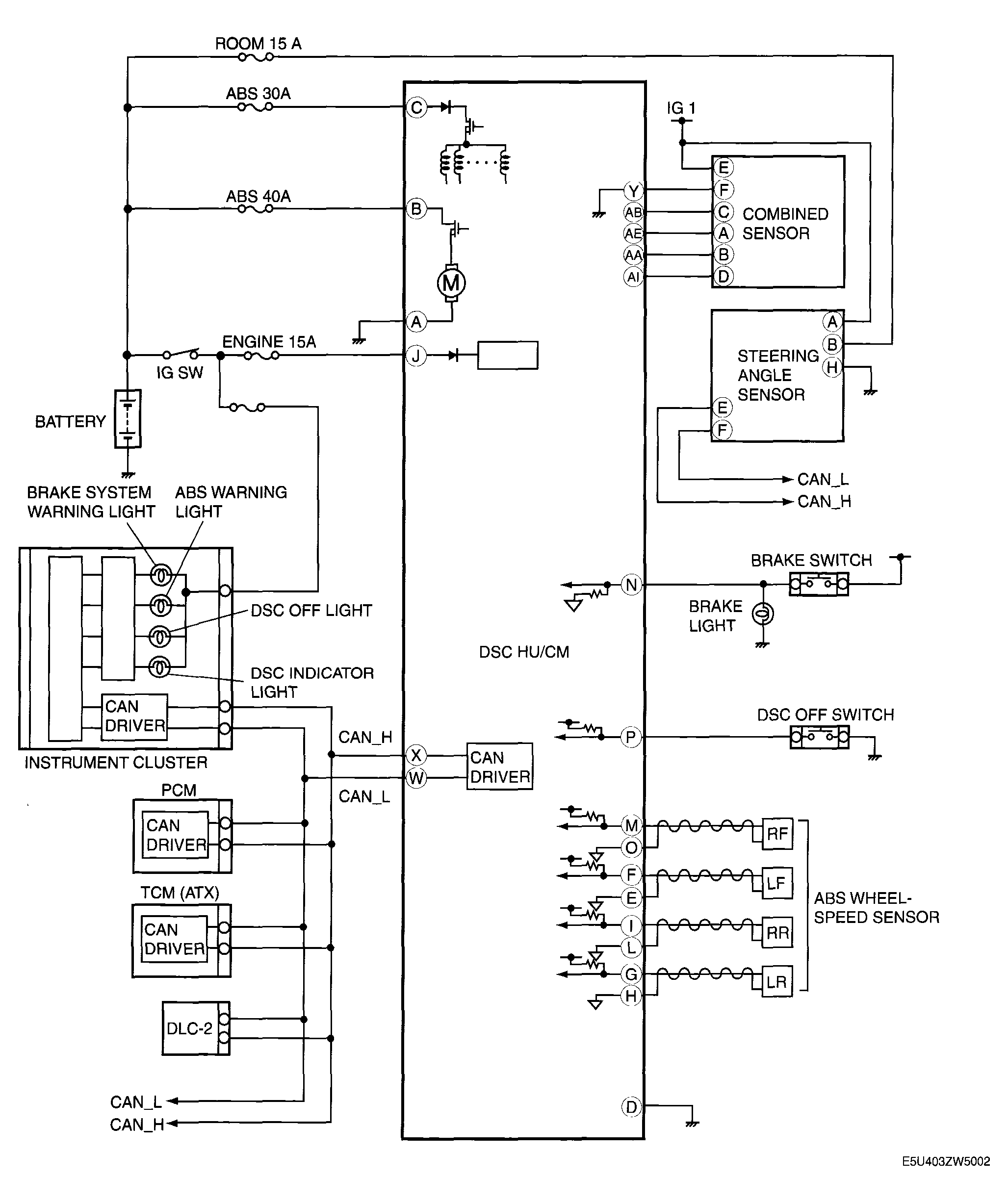

Fig 1: Dynamic Stability Control System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
