Air Bag System (SAS Control Module) Connector End View
Air Bag System (SAS Control Module) Connector End View

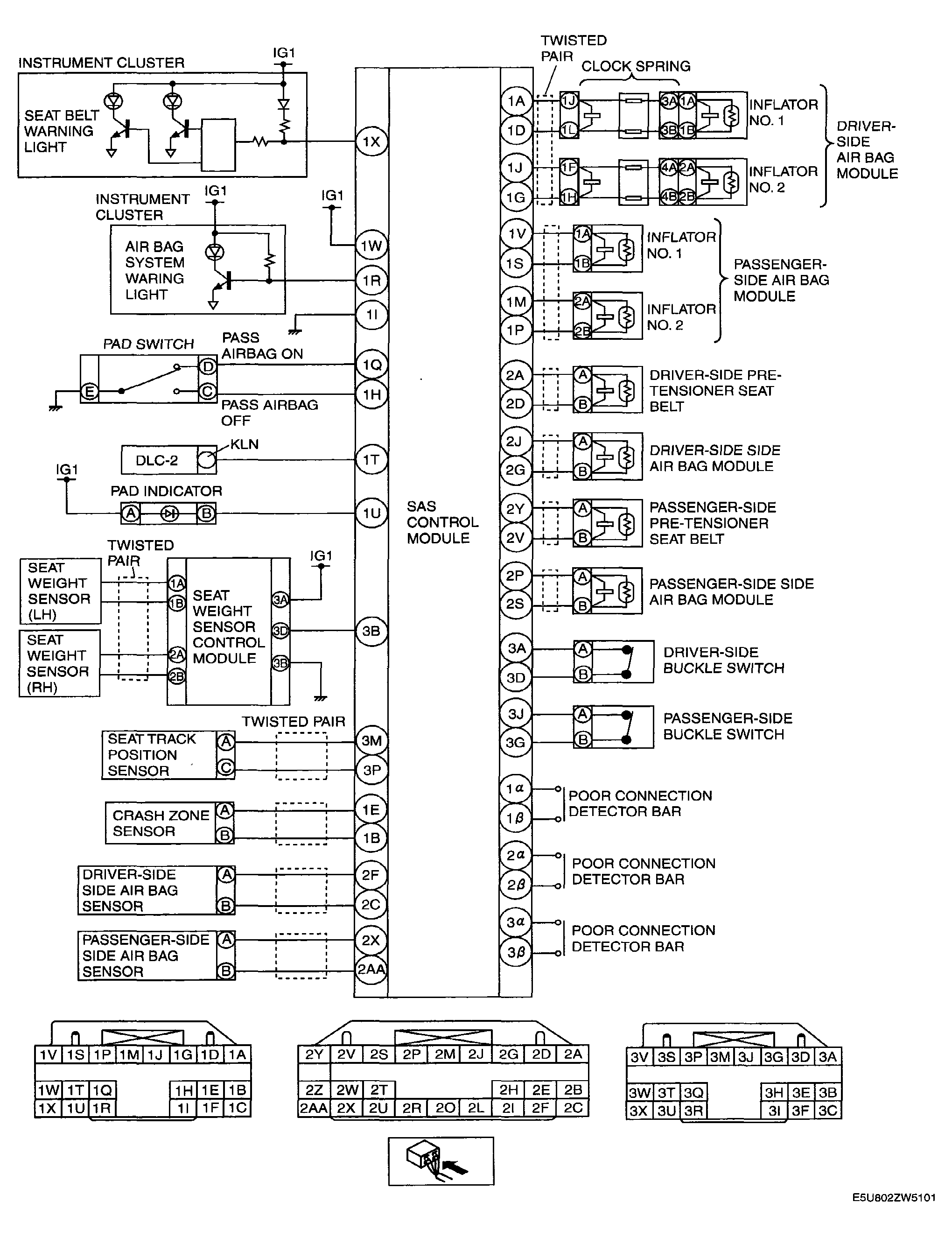

Fig 1: Air Bag System (SAS Control Module) Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
