Clock Spring Connector End View
Clock Spring Connector End View

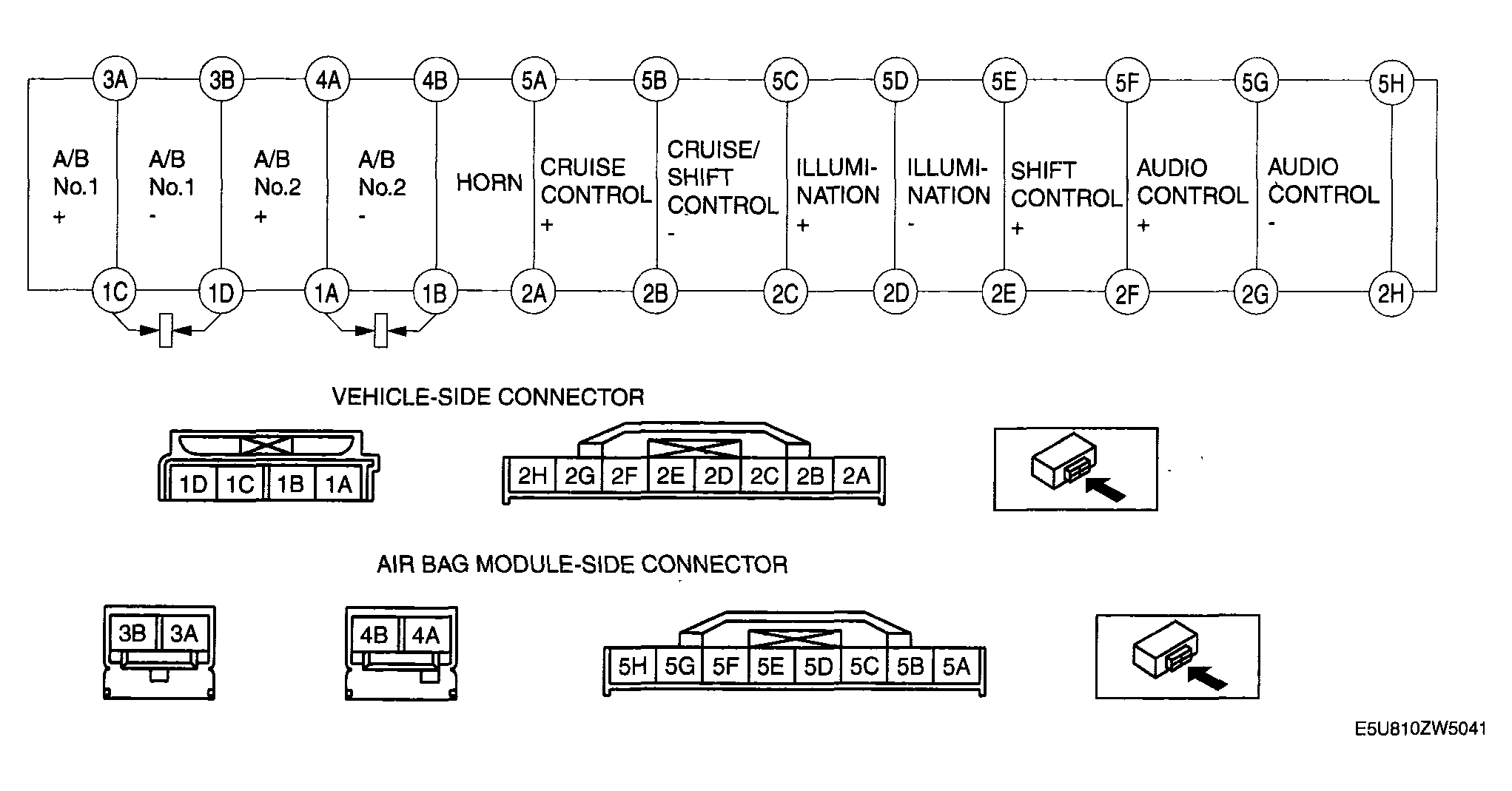

Fig 1: Clock Spring Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
