Instrument Cluster Disassembly/Assembly

CAUTION:

Do not drop the instrument cluster or damage the printed board. This will lead to a system malfunction.

Disassemble in the order indicated in Fig 1 .

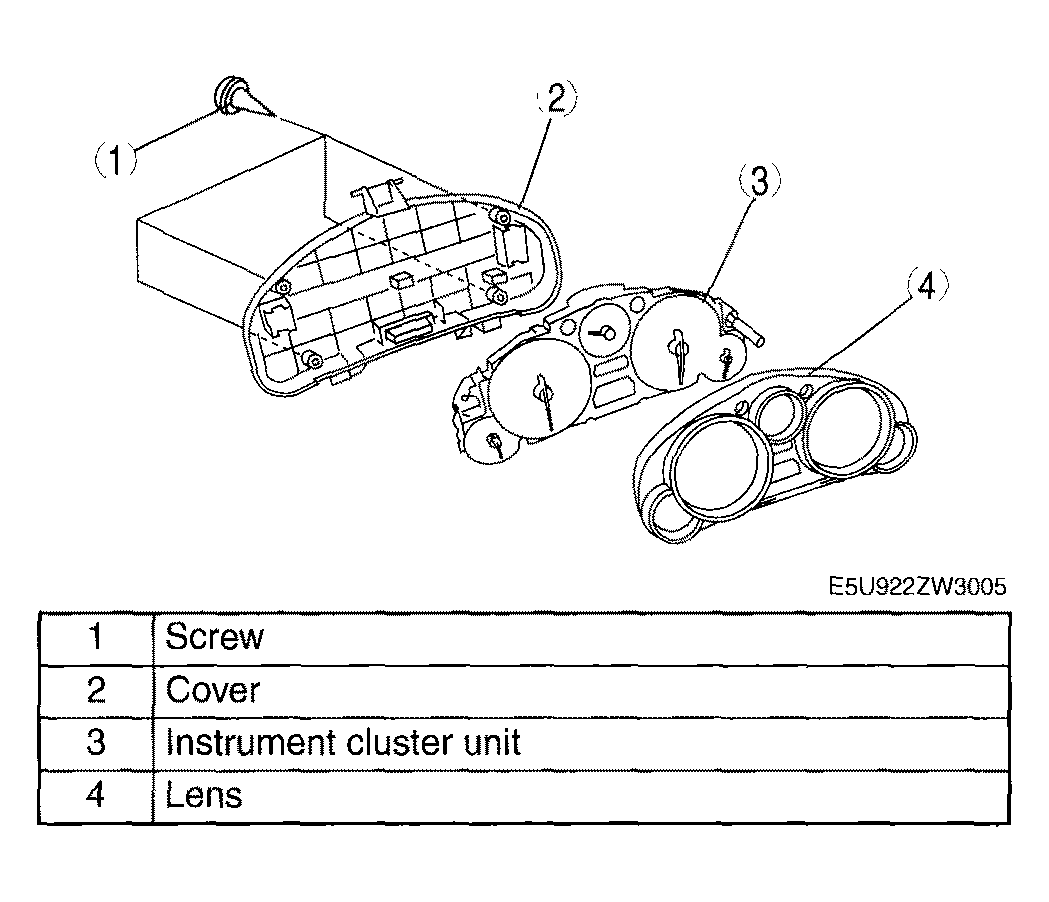

Fig 1: Exploded View Of Instrument Cluster Components
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
