Starter Disassembly/Assembly

Disassemble in the order indicated in Fig 1 .
Assemble in the reverse order of disassembly.

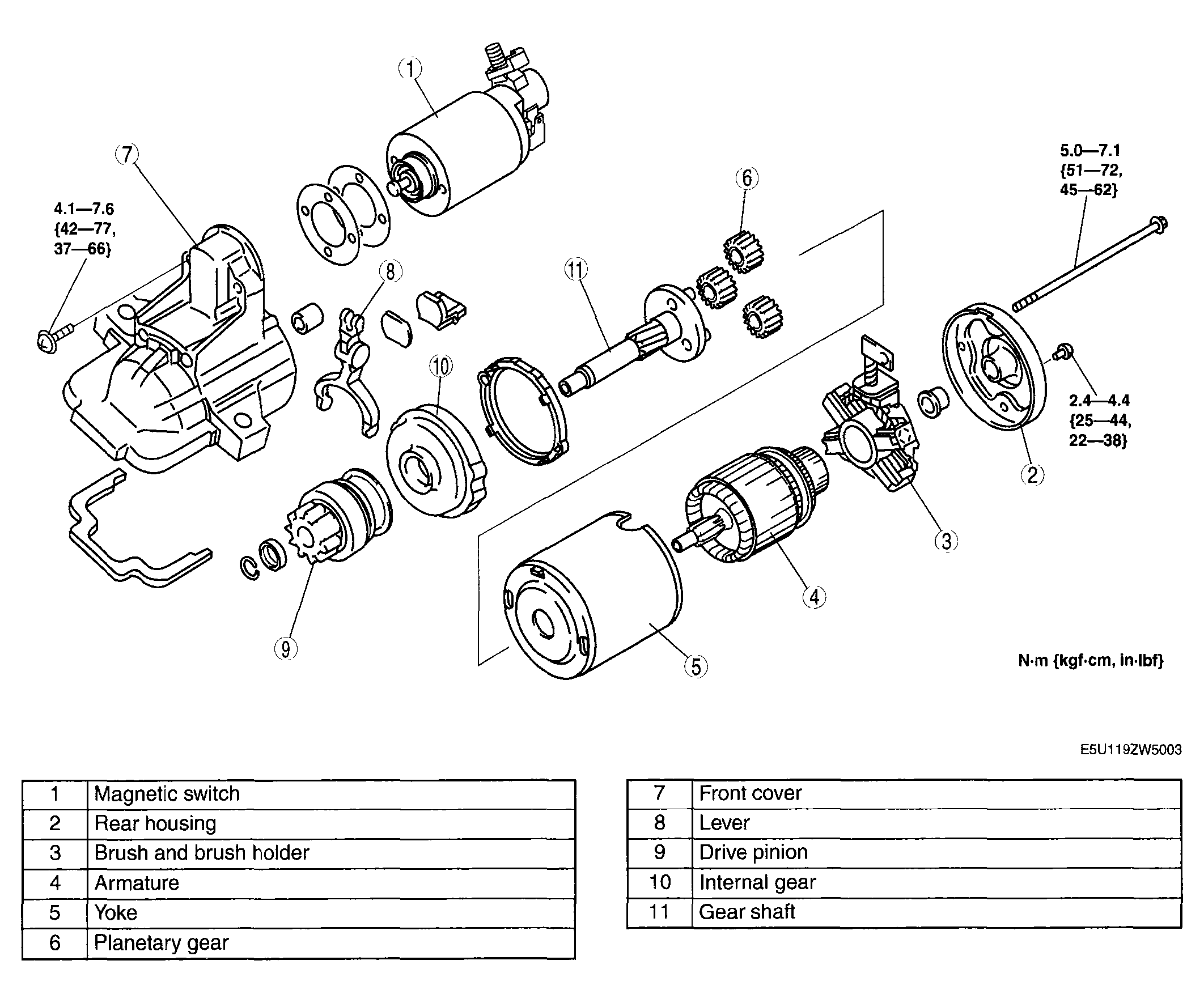

Fig 1: Disassemble Order Of Starter With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
