Exhaust Manifold Removal Note
- Disconnect the front HO2S connector and rear HO2S connector.

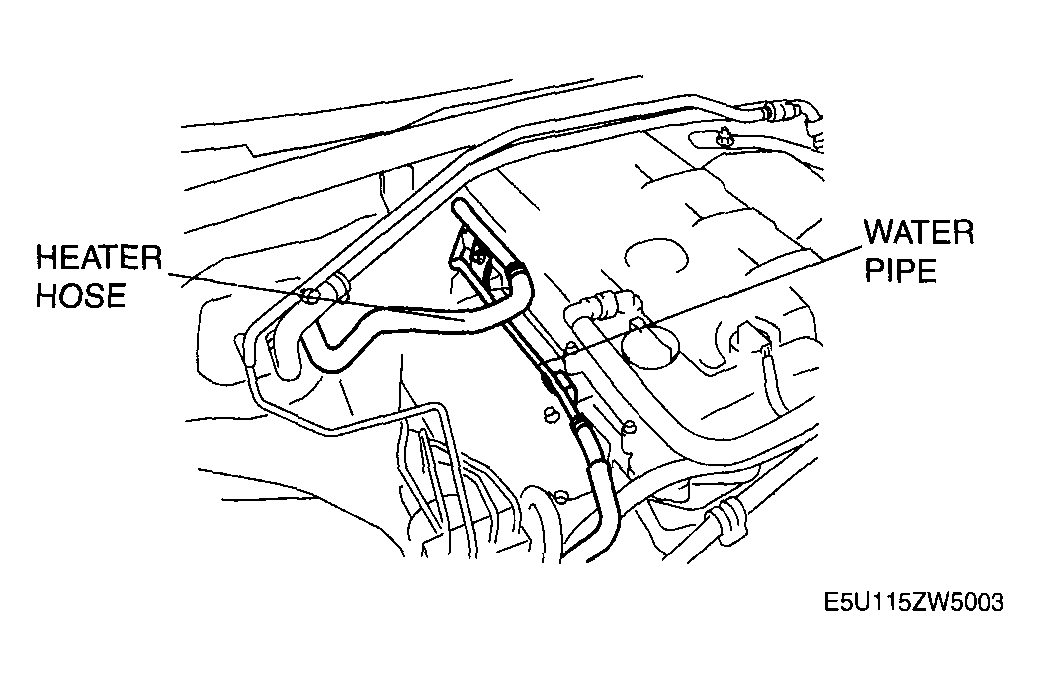

- Move the water pipe and heater hose slightly out of the way.
- Disconnect the ventilation hose from the cylinder head. (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION .)
