Control System Diagram
Control System Diagram

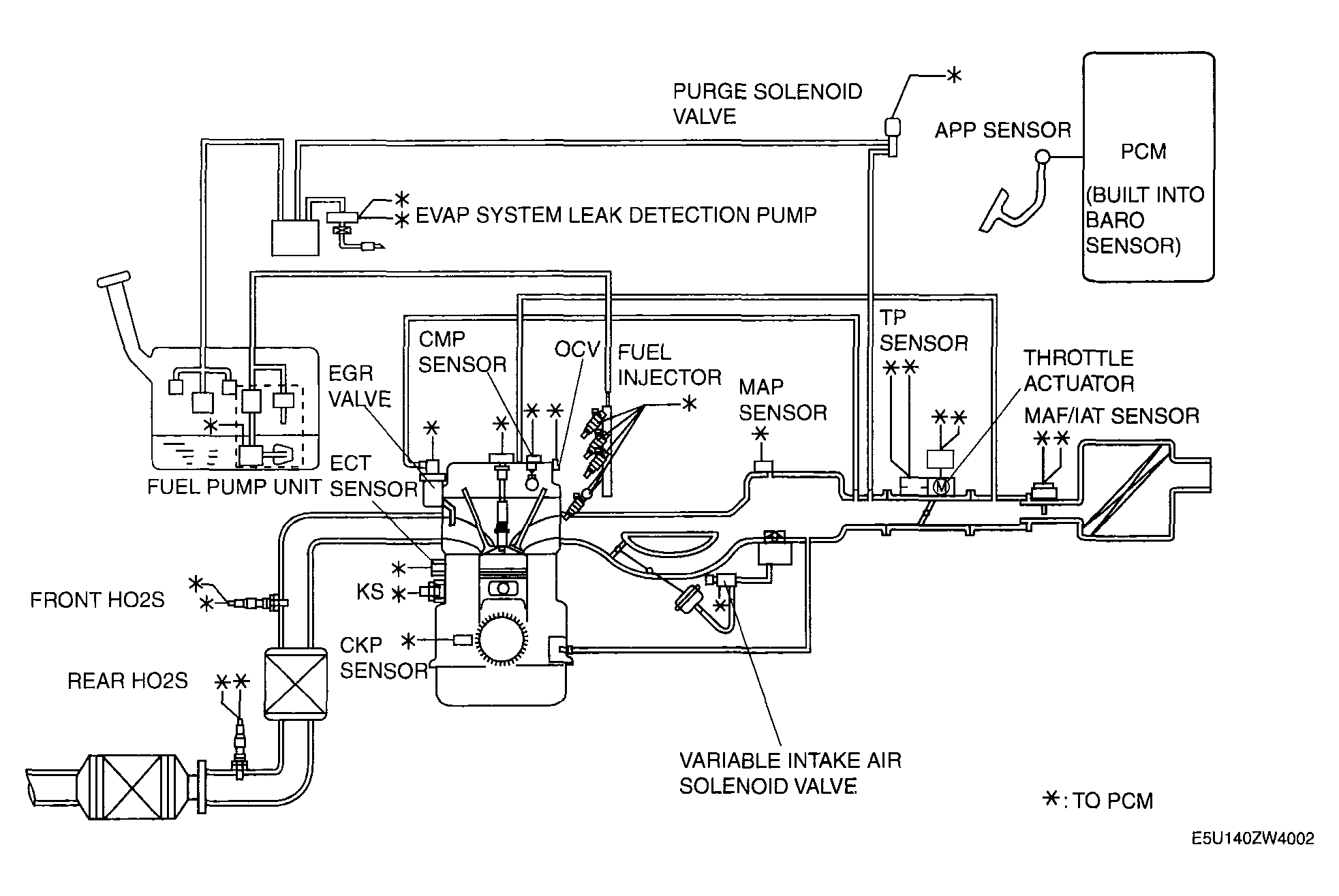

Fig 1: Engine Control System - System Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
