Inspection Using An Oscilloscope (Reference)
›
OCV Control Signal
›
Vehicle Condition
Vehicle Condition
Idle after warm-up

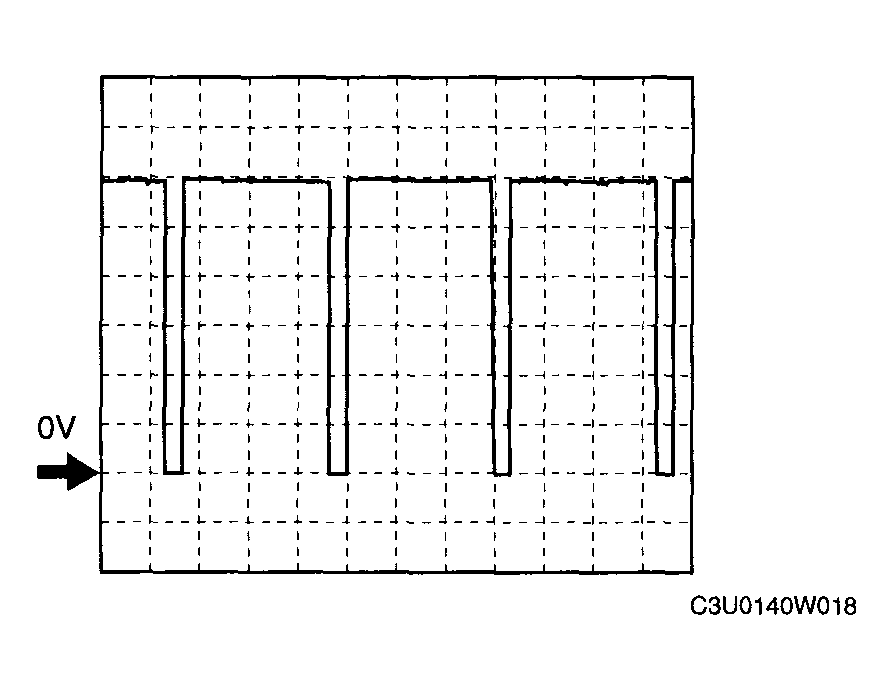

Fig 1: Waveform Graph (OCV Control Signal)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
