Inspection Using An Oscilloscope (Reference)
›
Purge Control Signal
›
Vehicle Condition
Vehicle Condition
Idle after warm-up

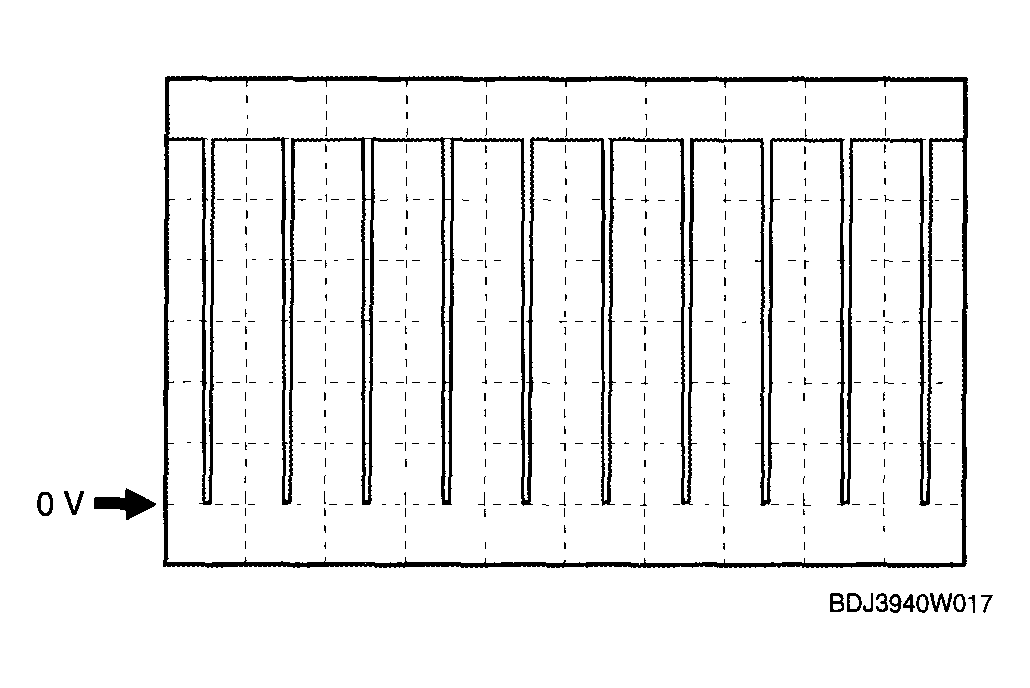

Fig 1: Waveform Graph (Purge Control Signal)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
