Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
Fuel System
›
Fuel System Location Index
›
Engine Compartment Side
Engine Compartment Side

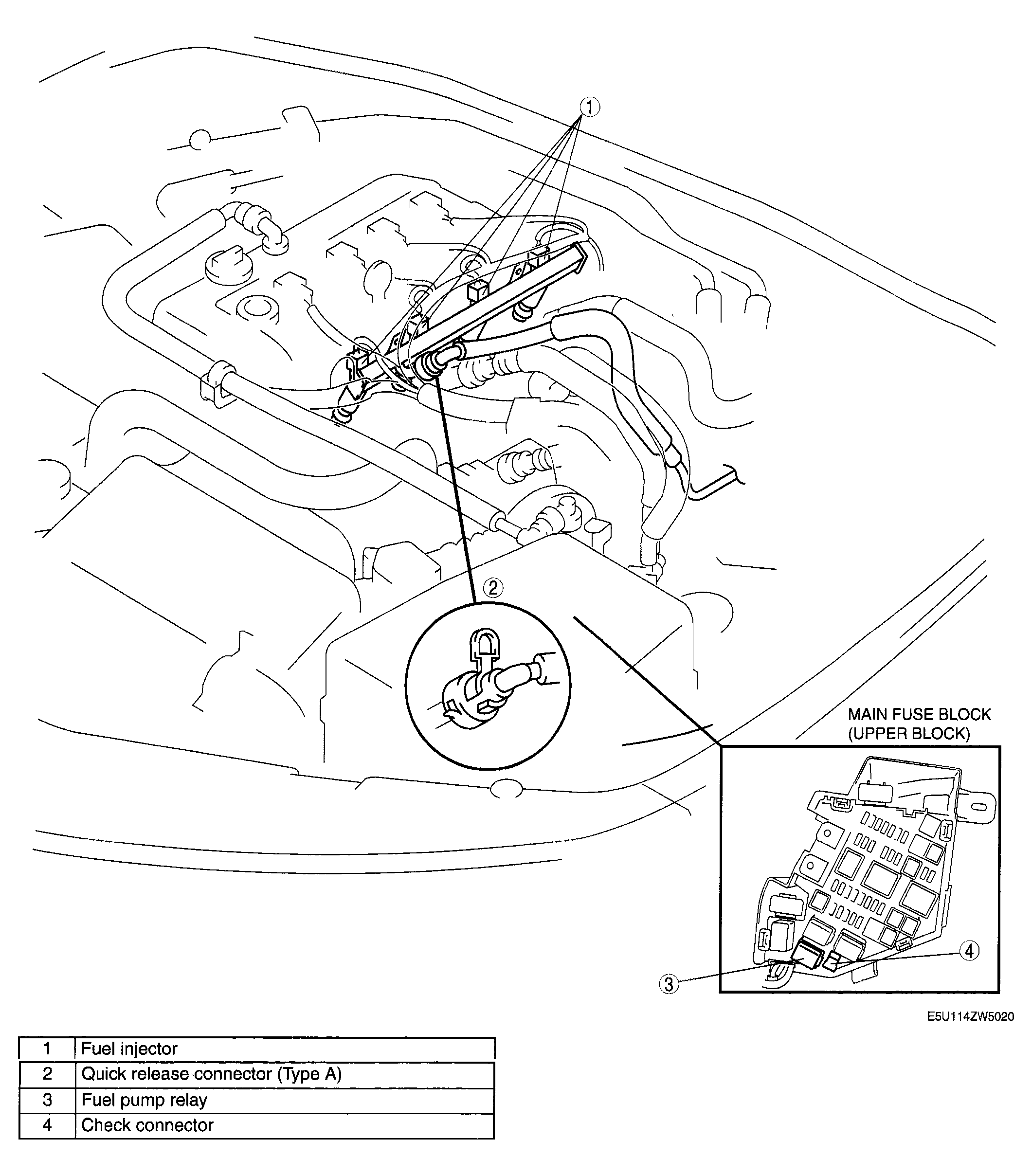

Fig 1: Identifying Location Of Fuel System Components (LF)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
