Monitoring System And Control System Device Relationship Table
Monitoring System And Control System Device Relationship Table

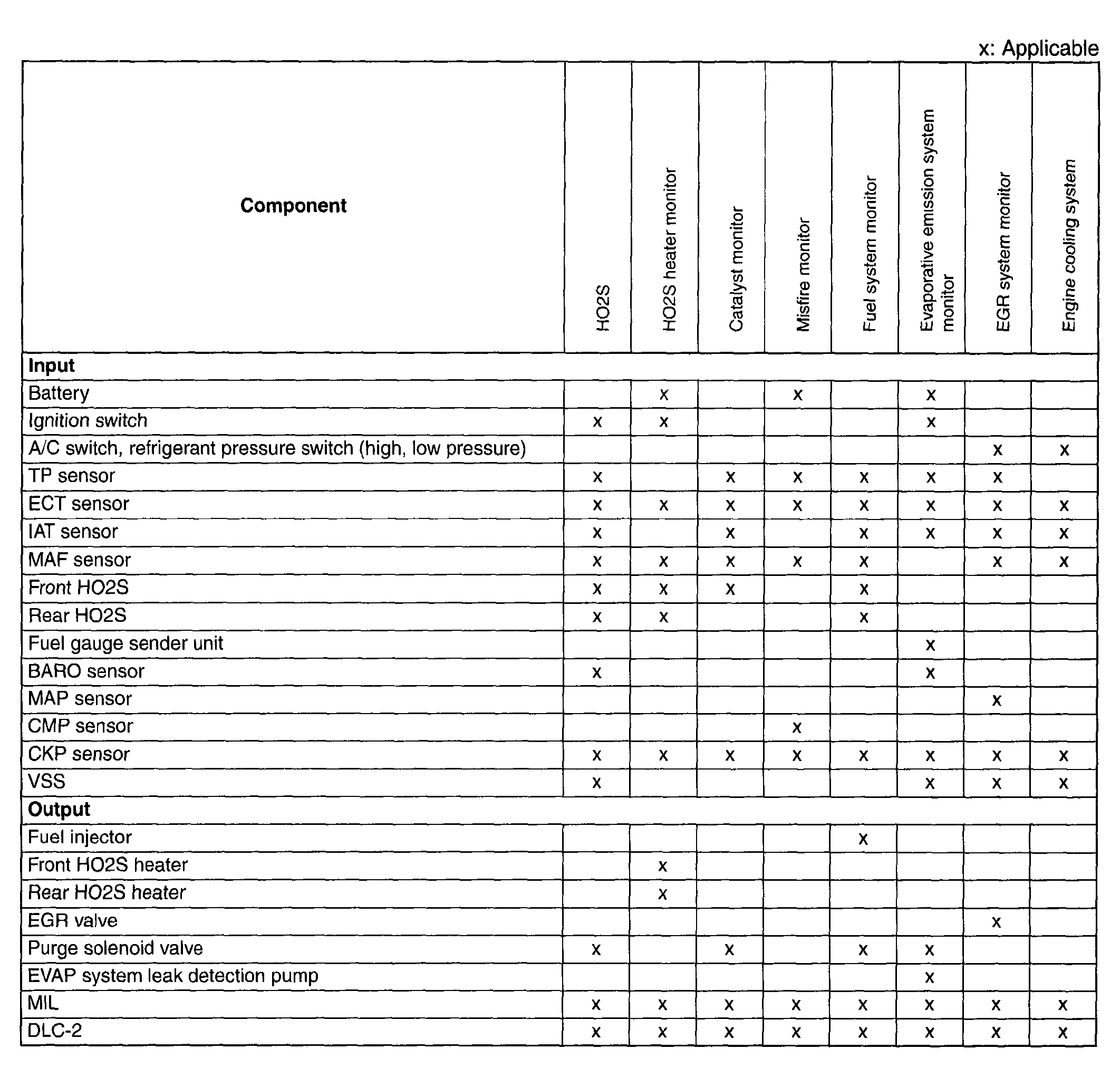

Fig 1: Monitoring System & Control System Device Relationship Table [LF]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
