Jacking Positions: Front

NOTE:

• To prevent obstruction between the jack body and front bumper when the jack body is inserted, use a low-floor type jack (frame height is 170 mm or less).
• Near the center of the front crossmember.

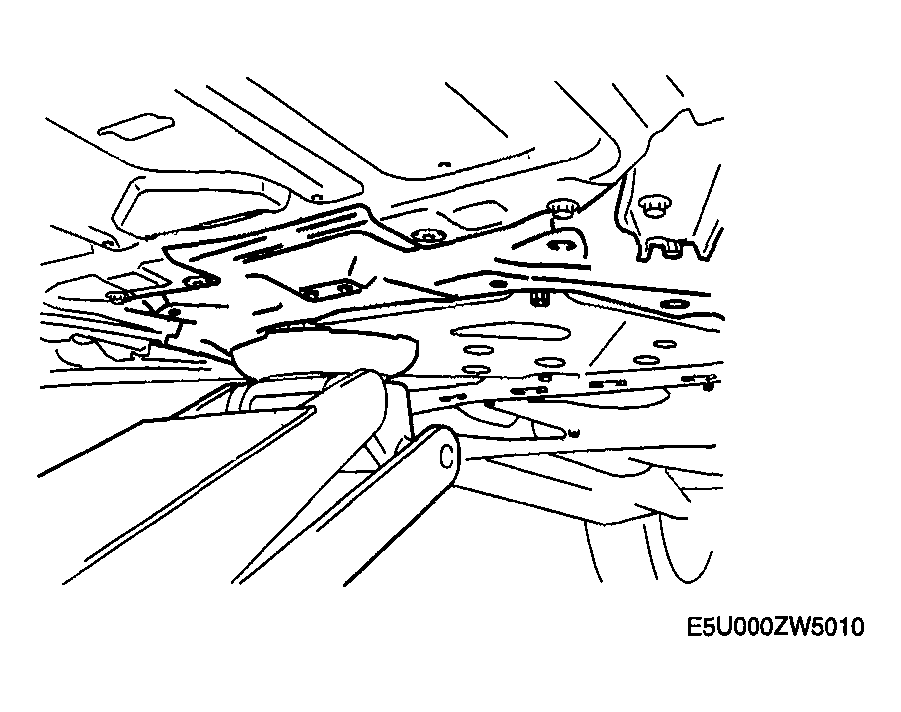

Fig 1: Supporting Vehicle Center Of Front Crossmember

Courtesy of MAZDA MOTORS CORP.
