Steering Gear And Linkage Assembly: Notes

CAUTION:

Place copper plates, rag, or similar material in a vise, when securing the mounting bracket portion of the steering gear.

Assemble in the order indicated in Fig 1 .

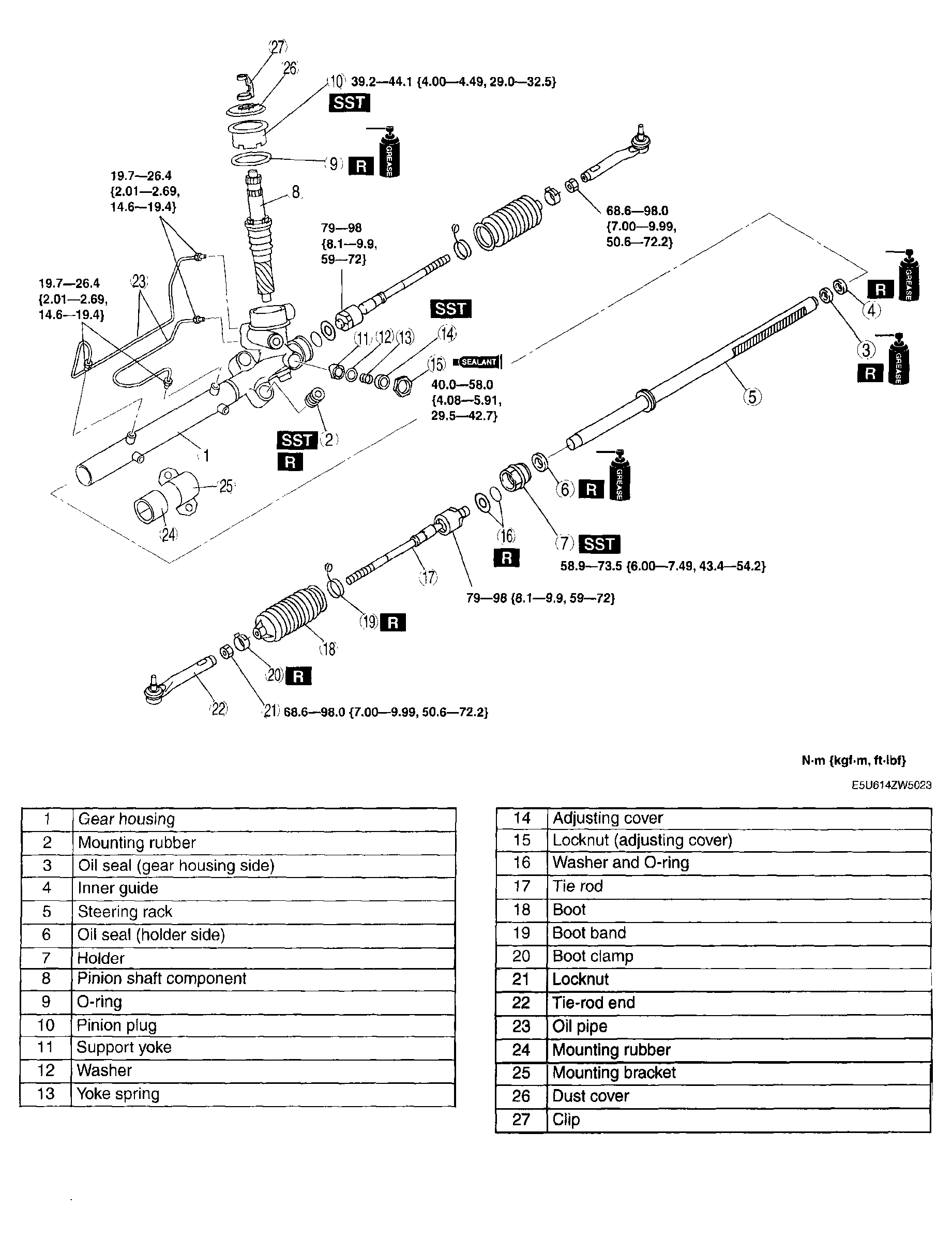

Fig 1: View Of Steering Gear And Linkage Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
