Brake Pipe Installation Note

Align the marks made before removal and install the brake pipe to the ABS HU/CM and brake pipe joint referring to Fig 1 .
Tighten the brake pipe to the specified torque using the SST (49 0259 770B).

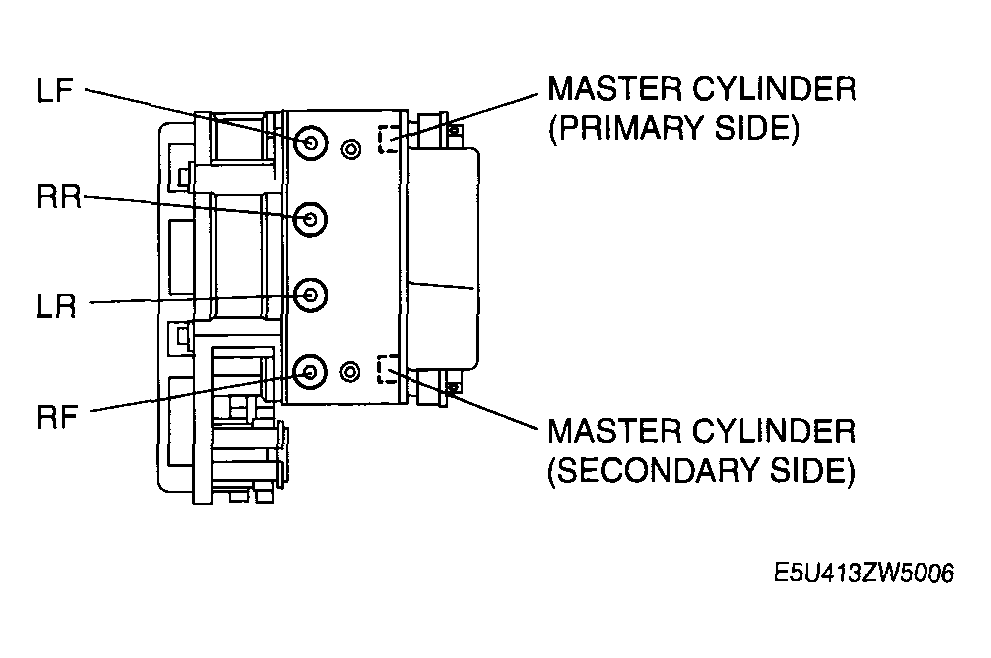

Fig 1: Installing Brake Pipe To ABS HU/CM & Brake Pipe Joint
Courtesy of MAZDA MOTORS CORP.
