Idle Air Control (IAC) Valve - 2.3L: Notes

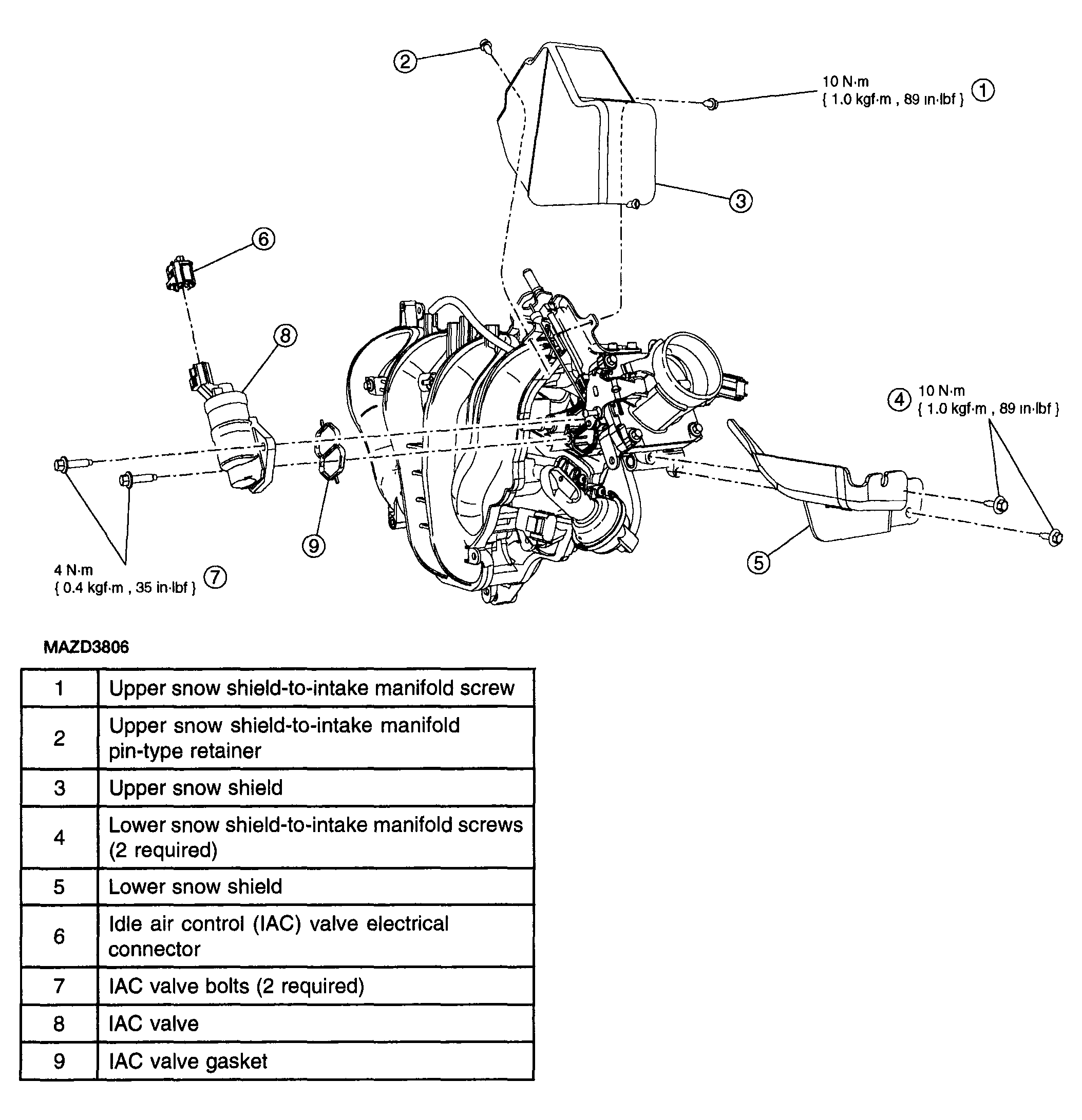

Fig 1: Removing/Installing Idle Air Control (IAC) Valve With Torque Specifications - 2.3L
G04320330Courtesy of MAZDA MOTORS CORP.
