Hydraulic Control Unit: Notes

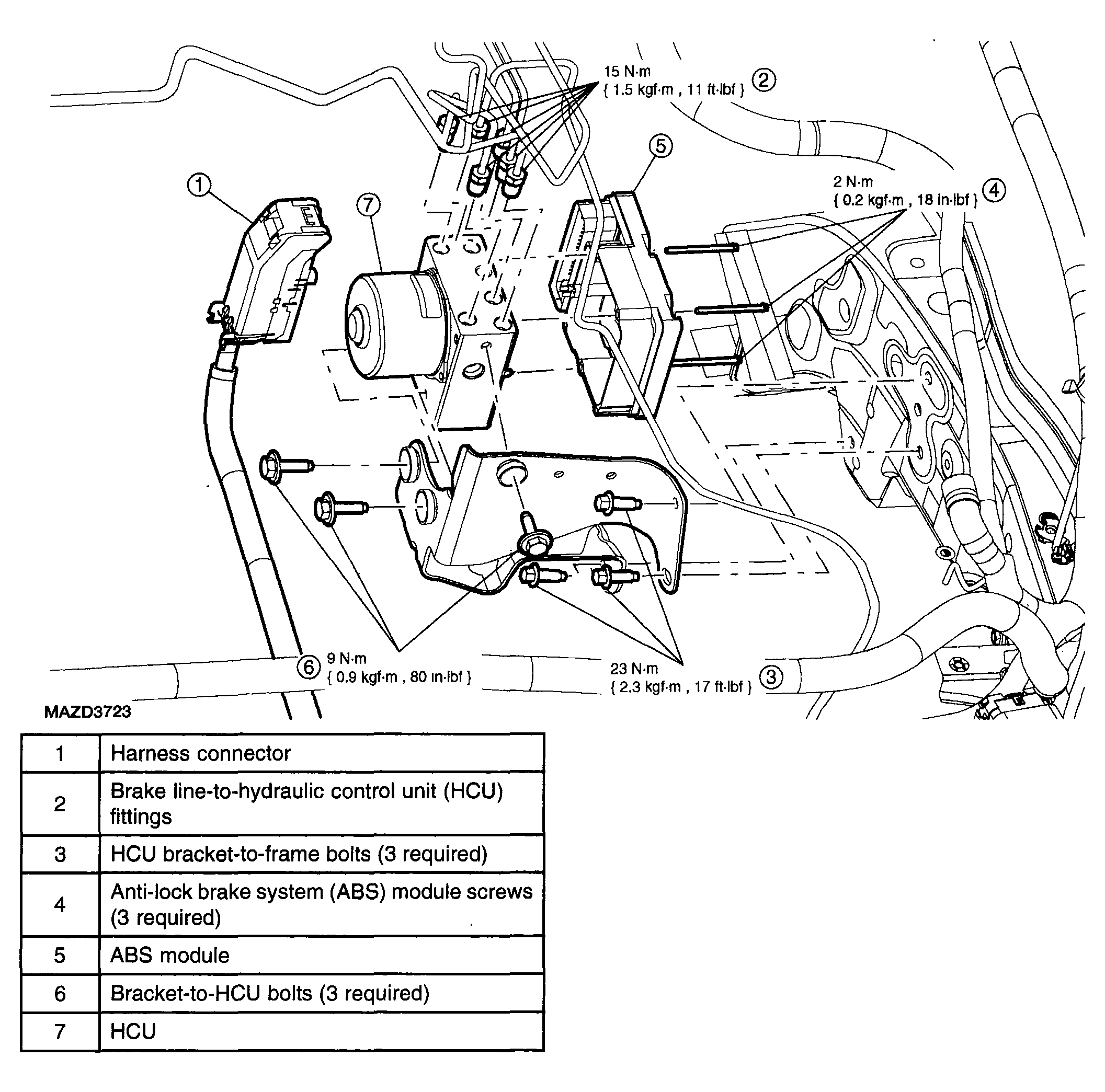

Fig 1: Hydraulic Control Unit Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
