Rear Wheel Speed Sensor And Sensor Ring: Notes

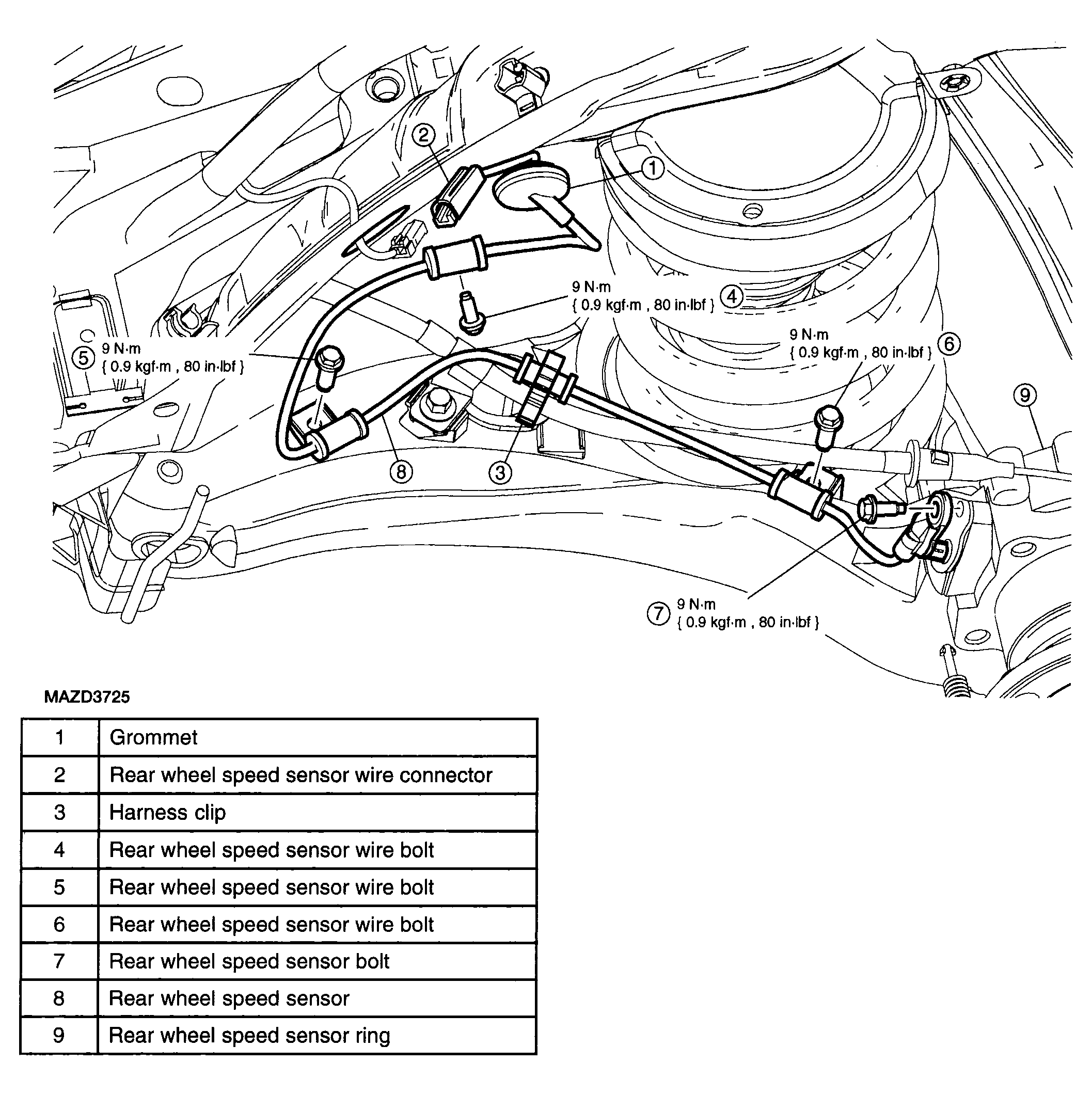

Fig 1: Rear Wheel Speed Sensor And Sensor Ring Replacement Components With Torque Specifications
G04320782Courtesy of MAZDA MOTORS CORP.
