Removal and Installation

Disconnect the negative battery cable. See BATTERY DISCONNECT .

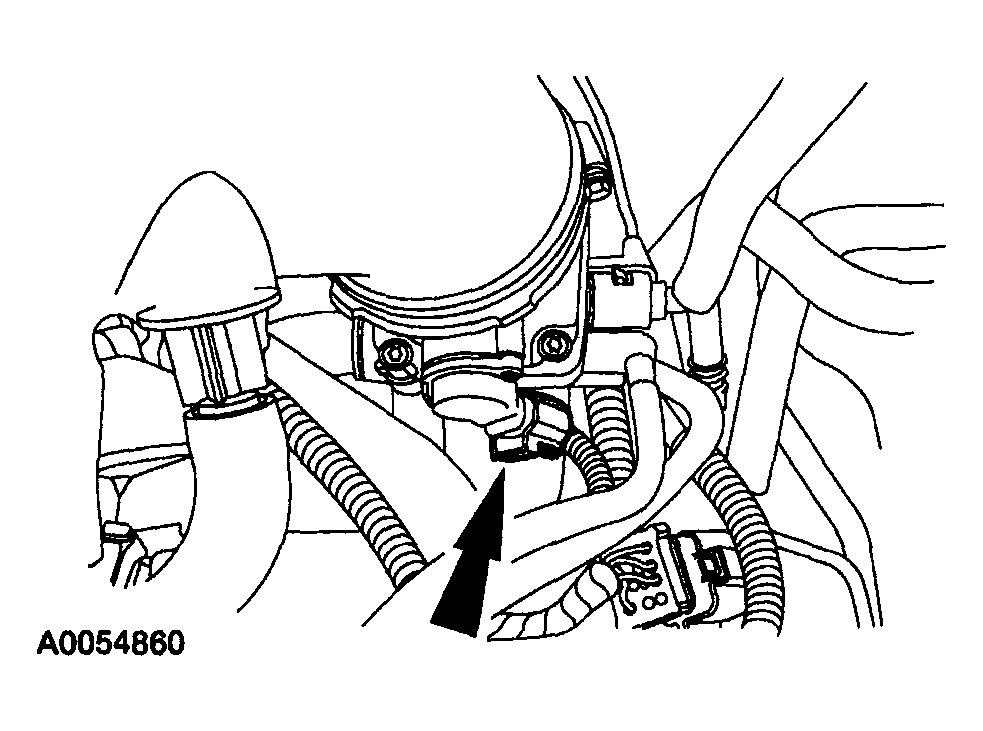

Fig 1: Disconnecting Throttle Position (TP) Sensor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the throttle position (TP) sensor electrical connector.

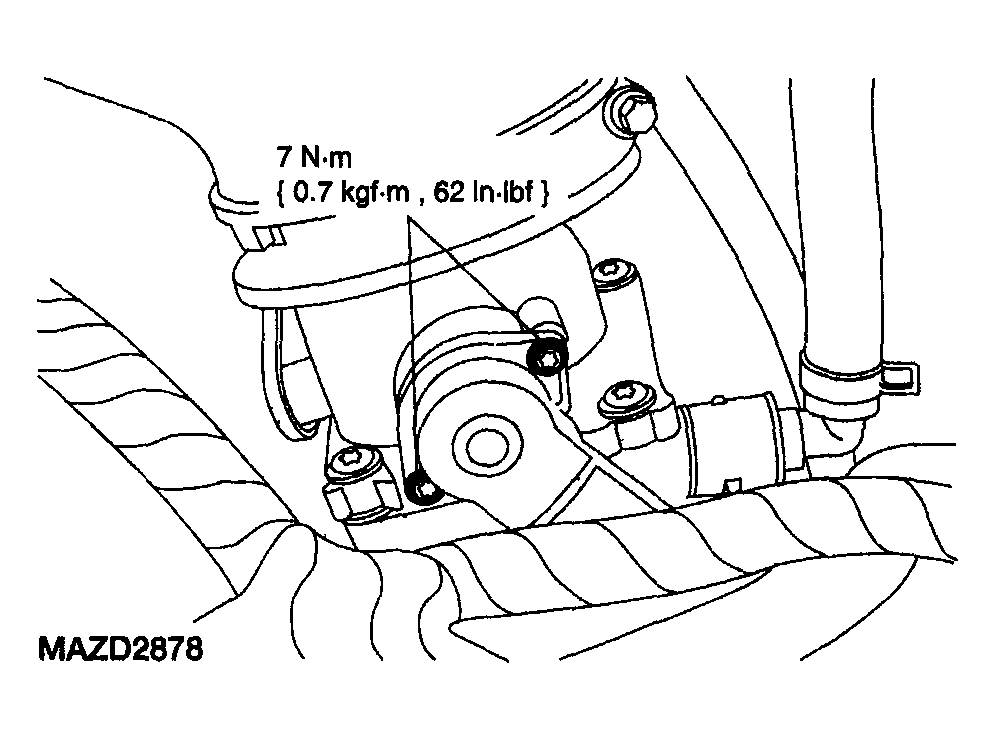

Fig 2: TP Sensor With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the two screws and the TP sensor.
CAUTION:
- Be sure to hand start the TP sensor screws. These are self-threading screws. Failure to hand start them can cause damage to the throttle body.
To install, reverse the removal procedure.
