Crankshaft Position (CKP) Sensor - 3.0L (4V): Notes

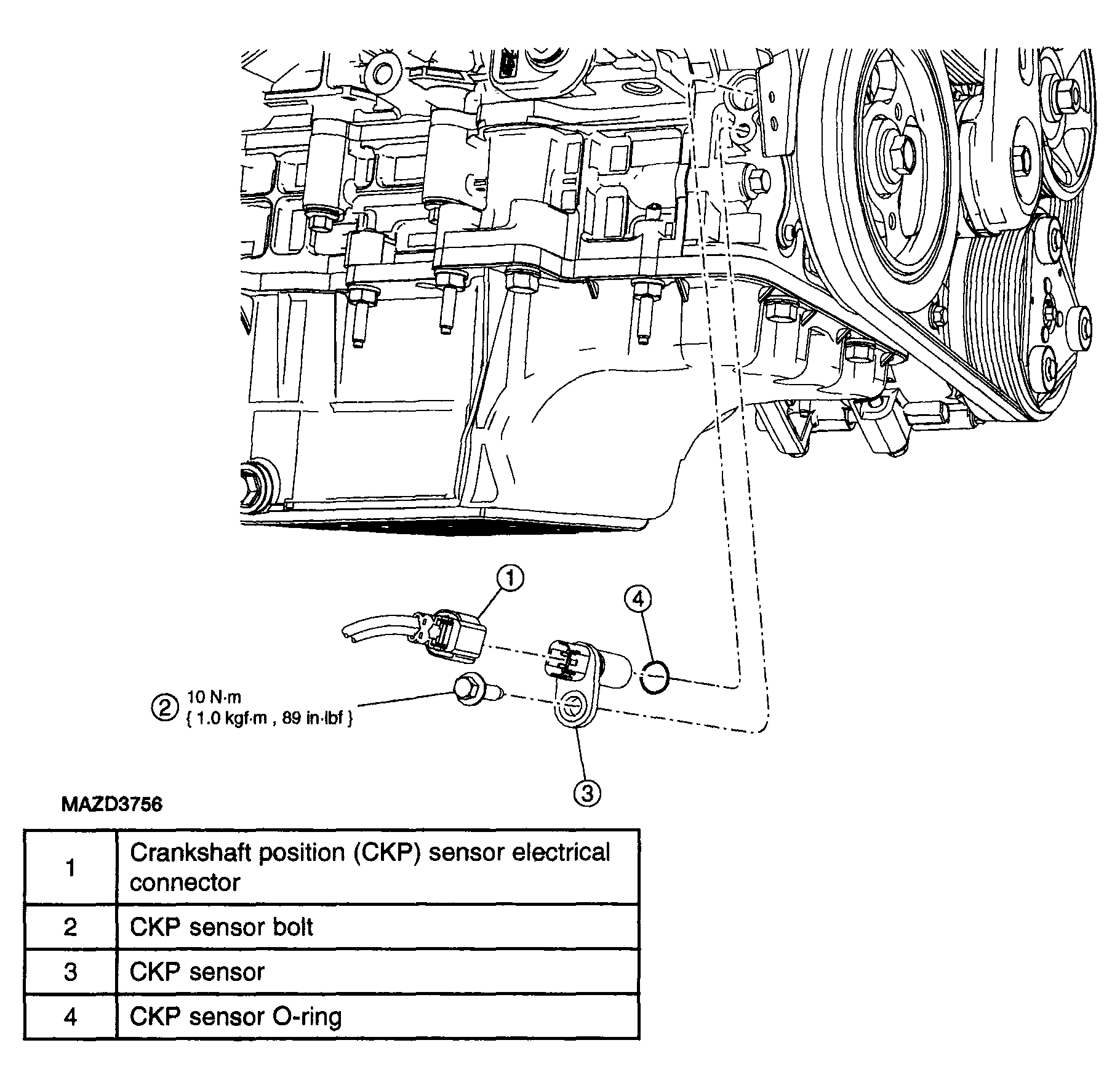

Fig 1: Removing/Installing Crankshaft Position (CKP) Sensor With Torque Specifications - 3.0L (4V)
G04320321Courtesy of MAZDA MOTORS CORP.
