Reverse Clutch: Notes

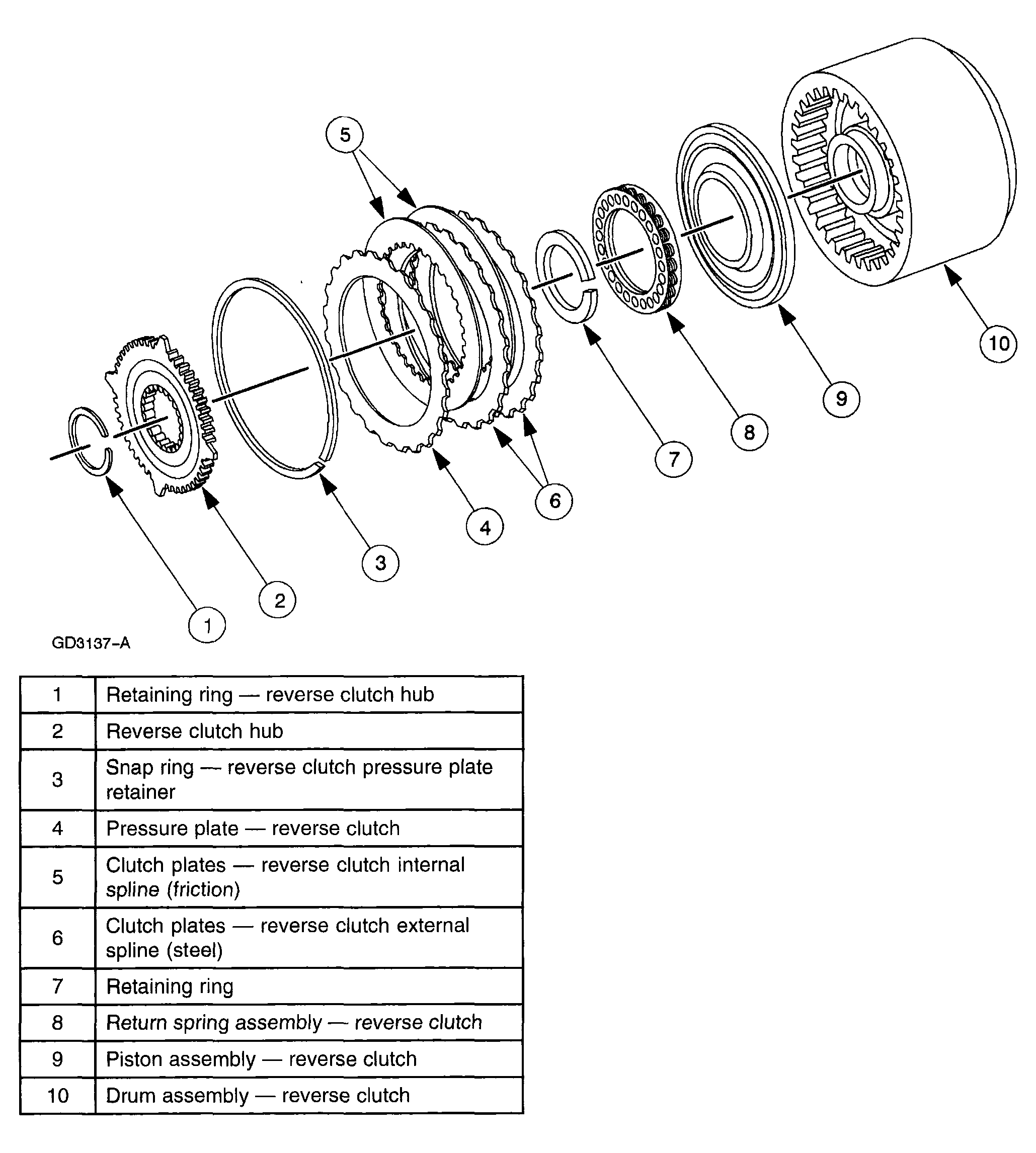

Fig 1: Exploded View Of Reverse Clutch
G04321445Courtesy of MAZDA MOTORS CORP.
