Speed Control DEACTIVATOR Switch: Installation

CAUTION:

Initial installation of a deactivator switch allows for one adjustment. If additional adjustments are required, install a new switch.

Fig 1: Identifying Plunger Lock
Courtesy of MAZDA MOTORS CORP.

Release the plunger lock.
- Turn the lock knob counterclockwise until the first click is felt.
Depress the brake pedal.

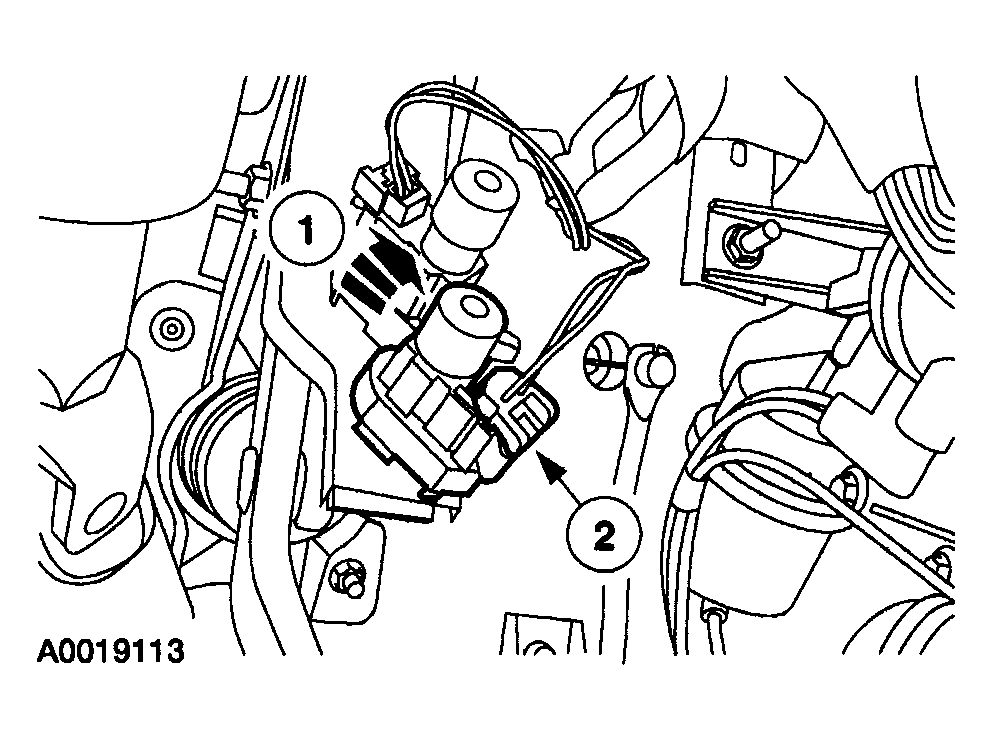

Fig 2: Installing Deactivator Switch
Courtesy of MAZDA MOTORS CORP.
Install the deactivator switch.
1. Position the deactivator switch in the bracket and rotate clockwise 45 degrees.
2. Connect the electrical connector.
  NOTE:
  - There should be an extra click heard when tugging on the brake pedal.
  - Slowly release the brake pedal and tug moderately once the pedal reaches the rest position.
