Hood Latch: Installation

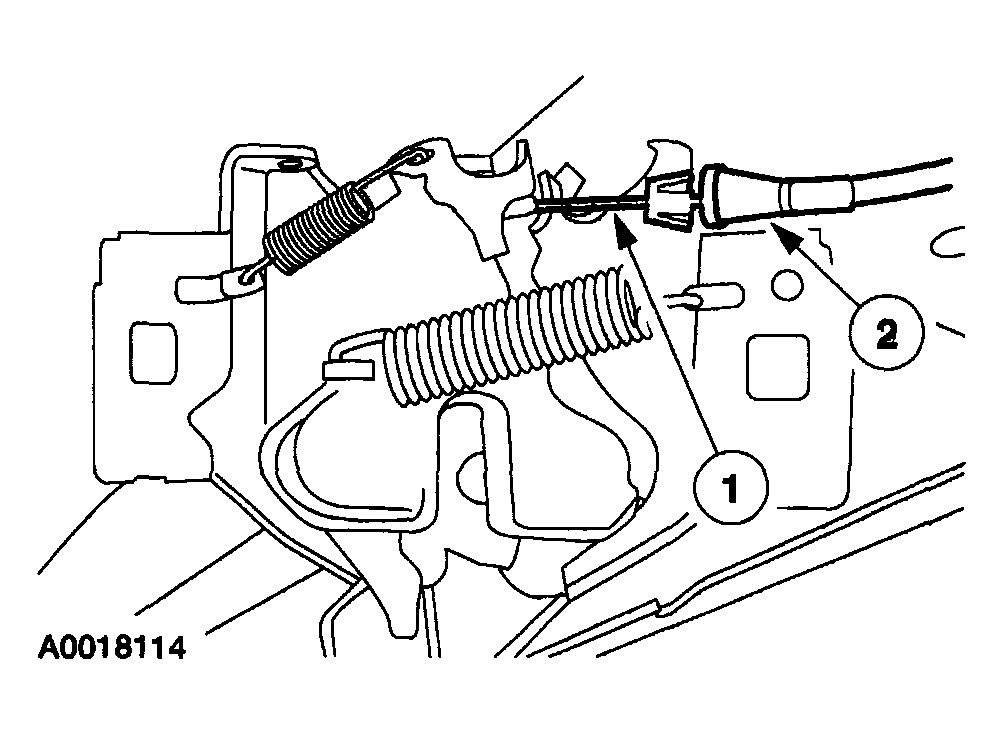

Fig 1: Connecting Hood Latch Release Cable And Conduit

Courtesy of MAZDA MOTORS CORP.

Connect the hood latch release cable and conduit.
1. Connect the cable.
2. Engage the cable conduit.

  Fig 2: Installing Hood Latch Bolts
  Courtesy of MAZDA MOTORS CORP.
  NOTE:
  - When the hood latch is installed, the latch adjustment must be checked to make sure the latch is installed and aligned correctly.
Position the hood latch with alignment marks and install the 2 hood latch bolts.
- Tighten to 9 N-m (0.9 kgf-m, 80 in-lbf).

  Fig 3: Installing Hood Latch Nut
  Courtesy of MAZDA MOTORS CORP.
Install the hood latch nut.
- Tighten to:
  - 9 N-m (0.9 kgf-m, 80 in-lbf) (vehicles built through 10/2005).
  - 5 N-m (0.5 kgf-m, 44 in-lbf) (vehicles built after 10/2005).
